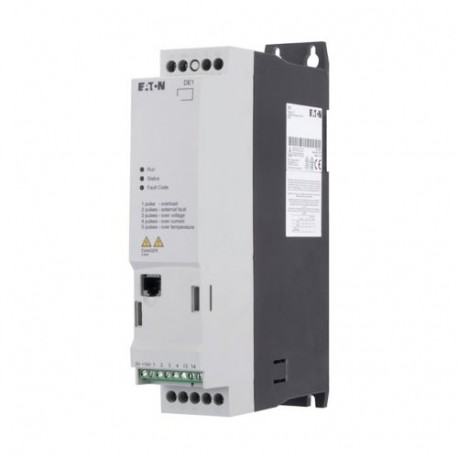

DE11-122D7NN-N20N 180658 Y7-180658 EATON ELECTRIC Variable speed starter, Rated operational voltage 230 V AC..
DE11-122D7NN-N20N
180658
Y7-180658
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Variable speed starter DE11-122D7NN-N20N manufactured by Eaton Moeller provides controlled starting and stopping sequences for electric motors within commercial and industrial facilities. Motor starters protect connected hardware from excessive electrical surges during startup cycles.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 200 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 1
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 300 Hz
- Max. output voltage (EF009560): 250 V
- Nominal output current I2N (EF009561): 2.7 A
- Power consumption (EF000346): 27 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 1
- Number of digital outputs (EF001993): 0
- Number of digital inputs (EF001992): 4
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
IEC/EN61800-5
RoHS, ISO 9001
UL Category Control No.: NMMS, NMMS7
CSA-C22.2 No. 14
IEC/EN 61800-3
Safety requirements: IEC/EN 61800-5-1
UL File No.: E172143
UL
RCM
UL 508C
UL report applies to both US and Canada
CE
Certified by UL for use in Canada
Specification for general requirements: IEC/EN 61800-2
CUL
Global
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
Features & Functions
C3 ≤ 25 m, Radio interference level, maximum motor cable length
C1 ≤ 5 m, Radio interference level, maximum motor cable length
CANopen®, built in
OP-Bus (RS485), built in
Yes
NEMA Other
EtherNet/IP
Other bus systems
CAN
C1: for conducted emissions only
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
General
Above 1000 m with 1 % derating per 100 m
Climatic environmental conditions
< 3.5 mA (AC-operated)
U/f control
230 V AC, 3-phase
240 V AC, 1-phase
Main circuit
Motor rating
Apparent power
Max. 30 % MN, Standard - Main circuit
