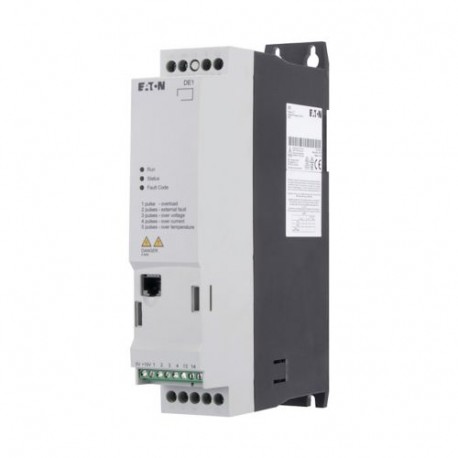

DE11-122D7FN-N20N 180652 Y7-180652 EATON ELECTRIC Variable speed starters, Rated operational voltage 230 V A..
DE11-122D7FN-N20N
180652
Y7-180652
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller variable speed starter, part number DE11-122D7FN-N20N, offers a reliable hybrid solution bridging traditional motor starters and advanced frequency drives for basic industrial tasks. These devices simplify motor control by providing adjustable starting characteristics without complex programming requirements.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 200 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 1
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 300 Hz
- Max. output voltage (EF009560): 250 V
- Nominal output current I2N (EF009561): 2.7 A
- Power consumption (EF000346): 27 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 1
- Number of digital outputs (EF001993): 0
- Number of digital inputs (EF001992): 4
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
CE
Certified by UL for use in Canada
CUL
IEC/EN 61800-3
IEC/EN61800-5
UL Category Control No.: NMMS, NMMS7
IEC/EN61800-3
RCM
UL 508C
Specification for general requirements: IEC/EN 61800-2
UL File No.: E172143
UL report applies to both US and Canada
RoHS, ISO 9001
Safety requirements: IEC/EN 61800-5-1
UL
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
PC connection
PC connection
General
C2 ≤ 10 m, Radio interference level, maximum motor cable length
C1 ≤ 5 m, Radio interference level, maximum motor cable length
CANopen®, built in
Modbus RTU, built in
Yes
NEMA Other
Other bus systems
EtherNet/IP
CAN
C1: for conducted emissions only
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Above 1000 m with 1 % derating per 100 m
Main circuit
< 3.5 mA (AC-operated)
Speed control with slip compensation
230 V AC, 3-phase
240 V AC, 1-phase
Motor rating
Apparent power
Braking function
Adjustable to 100 %, DC - Main circuit
