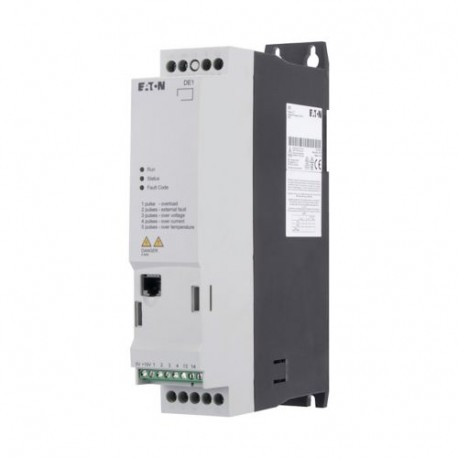

DE11-121D4NN-N20N 180656 Y7-180656 EATON ELECTRIC Variable speed starter, Rated operational voltage 230 V AC..
DE11-121D4NN-N20N
180656
Y7-180656
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller DE11-121D4NN-N20N operates as a variable speed starter intended to manage the acceleration and operational velocity of industrial motors. Such units offer a streamlined alternative to full frequency inverters for basic drive tasks, ensuring smooth starts and protective motor control. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 200 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 1
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 300 Hz
- Max. output voltage (EF009560): 250 V
- Nominal output current I2N (EF009561): 1.4 A
- Power consumption (EF000346): 17 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 1
- Number of digital outputs (EF001993): 0
- Number of digital inputs (EF001992): 4
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
IEC/EN61800-5
CUL
IEC/EN 61800-3
CE
CSA-C22.2 No. 14
Safety requirements: IEC/EN 61800-5-1
RoHS, ISO 9001
UL Category Control No.: NMMS, NMMS7
UL
RCM
UL report applies to both US and Canada
UL File No.: E172143
IEC/EN61800-3
Certified by UL for use in Canada
Specification for general requirements: IEC/EN 61800-2
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
General
C1 ≤ 5 m, Radio interference level, maximum motor cable length
C2 ≤ 10 m, Radio interference level, maximum motor cable length
OP-Bus (RS485), built in
CANopen®, built in
Yes
NEMA Other
EtherNet/IP
Other bus systems
CAN
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
C1: for conducted emissions only
Climatic environmental conditions
Above 1000 m with 1 % derating per 100 m
Main circuit
< 3.5 mA (AC-operated)
Speed control with slip compensation
230 V AC, 3-phase
240 V AC, 1-phase
Motor rating
Apparent power
Braking function
Adjustable to 100 %, DC - Main circuit
