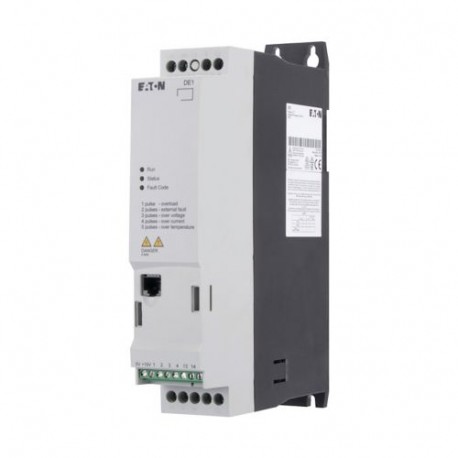

DE11-121D4FN-N20N 180650 Y7-180650 EATON ELECTRIC Variable speed starters, Rated operational voltage 230 V A..
DE11-121D4FN-N20N
180650
Y7-180650
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Variable speed starter built by Eaton Moeller, identified by part number DE11-121D4FN-N20N, employed to manage motor start-up characteristics and operating speeds in automated machinery. Such starters protect mechanical components from high inrush currents while offering basic speed regulation for standard industrial processes.
Current pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 200 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 1
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 300 Hz
- Max. output voltage (EF009560): 250 V
- Nominal output current I2N (EF009561): 1.4 A
- Power consumption (EF000346): 17 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 0
- Number of analogue inputs (EF001994): 1
- Number of digital outputs (EF001993): 0
- Number of digital inputs (EF001992): 4
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
IEC/EN61800-3
RCM
RoHS, ISO 9001
CUL
IEC/EN 61800-3
UL 508C
IEC/EN61800-5
UL Category Control No.: NMMS, NMMS7
UL
CSA-C22.2 No. 14
Safety requirements: IEC/EN 61800-5-1
UL report applies to both US and Canada
CE
UL File No.: E172143
Certified by UL for use in Canada
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
PC connection
General
C1 ≤ 5 m, Radio interference level, maximum motor cable length
C2 ≤ 10 m, Radio interference level, maximum motor cable length
OP-Bus (RS485), built in
Modbus RTU, built in
In conjunction with DX-NET-SWD3 SmartWire DT module
NEMA Other
EtherNet/IP
MODBUS
CAN
C1: for conducted emissions only
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 2000 m
Main circuit
< 10 mA (DC-operated)
U/f control
240 V AC, 3-phase
230 V AC, 1-phase
Motor rating
Apparent power
Braking function
Adjustable to 100 %, DC - Main circuit
