DE1-343D6NN-N20N 177367 Y7-177367 EATON ELECTRIC Variable speed starter, Rated operational voltage 400 V AC,..
DE1-343D6NN-N20N
177367
Y7-177367
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

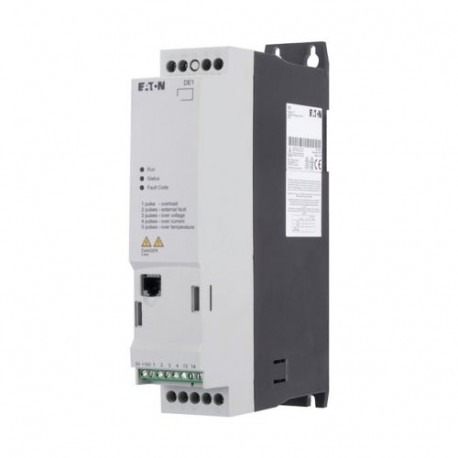

Eaton Moeller part DE1-343D6NN-N20N is a variable speed starter utilized in industrial settings to manage motor acceleration, deceleration, and operational velocity in standard three-phase electrical environments. These compact units provide precise speed control for pumps, fans, and simple conveyor machinery without complex programming.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: DE1-343D6NN-N20N
- Catalogue code: 177367
More info
▲General specifications
RoHS, ISO 9001
CE
UL File No.: E172143
IEC/EN 61800-3
UL report applies to both US and Canada
IEC/EN61800-5
UL
Certified by UL for use in Canada
CSA-C22.2 No. 14
RCM
Safety requirements: IEC/EN 61800-5-1
Specification for general requirements: IEC/EN 61800-2
UL 508C
UL Category Control No.: NMMS, NMMS7
CUL
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
General
C3 ≤ 25 m, Radio interference level, maximum motor cable length
OP-Bus (RS485), built in
Yes
NEMA Other
Other bus systems
EtherNet/IP
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Above 1000 m with 1 % derating per 100 m
Main circuit
< 10 mA (DC-operated)
U/f control
400 V AC, 3-phase
480 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
