DC1-S17D0NN-A66CE1 186074 EATON ELECTRIC Variable frequency drives, 1-/single-phase 115 V, 7.0 A, 0.37 kW
DC1-S17D0NN-A66CE1
186074
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

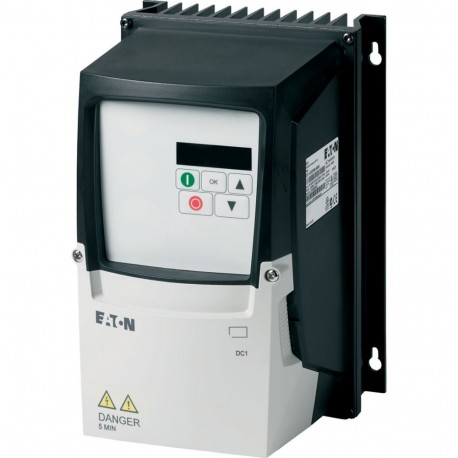

Manufactured by Eaton Moeller, the DC1-S17D0NN-A66CE1 represents a compact variable frequency drive built for single-phase motor control applications.
These electronic devices provide precise frequency adjustments to govern motor speeds in simpler automation setups, conveyors, and small-scale machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 110 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 1
- Number of phases output (EF006998): 1
- Max. output frequency (EF007350): 60 Hz
- Max. output voltage (EF009560): 125 V
- Nominal output current I2N (EF009561): 7 A
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 1
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 1
- Number of digital inputs (EF001992): 4
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
- Supporting protocol for TCP/IP (EF003050): No
More info
▲Delivery program
Additional PCB protection
Fieldbus
drivesConnect
drivesConnect mobile (App)
Technical data
EMC requirements: IEC/EN 61800-3
Safety requirements: IEC/EN 61800-5-1
Above 1000 m: 1% derating for every 100 m
max. 4000 m m
adjustable 4 - 32 (audible) kHz
Speed control with slip compensation
sensorless vector control (SLV)
PM motors
Synchronous reluctance motors
BLDC motors
Additional PCB protection
screened, with motor choke: 100
unscreened: 75
unscreened, with motor choke: 150 m
