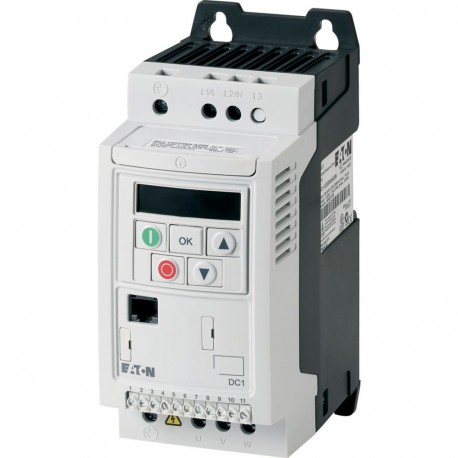

DC1-S17D0NN-A20CE1 186073 Y7-186073 EATON ELECTRIC Variable frequency drives, 1-/single-phase 115 V, 7.0 A, ..
DC1-S17D0NN-A20CE1
186073
Y7-186073
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller variable frequency drive provides precise motor speed and torque regulation for single-phase electrical systems in commercial and light industrial applications. These compact devices are typically deployed on pumps, small conveyors, and ventilation fans to optimize operational efficiency and soft-start capabilities.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 110 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 1
- Number of phases output (EF006998): 1
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 125 V
- Nominal output current I2N (EF009561): 7 A
- Power consumption (EF000346): 18.5 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 1
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 1
- Number of digital inputs (EF001992): 4
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
CSA-C22.2 No. 14
UkrSEPRO
IEC/EN 61800-3
Certified by UL for use in Canada
CE
UL report applies to both US and Canada
CUL
UL File No.: E172143
IEC/EN61800-5
UL
UL 508C
IEC/EN61800-3
RoHS, ISO 9001
UL Category Control No.: NMMS, NMMS7
Specification for general requirements: IEC/EN 61800-2
Safety requirements: IEC/EN 61800-5-1
EAC
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: Fieldbus
Parameterization: Keypad
7-digital display assembly
PC connection
Control unit
Internal DC link
Additional PCB protection
General
150 m, unscreened, with motor choke, maximum permissible, Motor feeder
50 m, screened, maximum permissible, Motor feeder
75 m, unscreened, maximum permissible, Motor feeder
OP-Bus (RS485), built in
Modbus RTU, built in
SmartWire-DT, optional
In conjunction with DX-NET-SWD3 SmartWire DT module
NEMA 0
EtherNet/IP
CAN
MODBUS
Climatic environmental conditions
Max. 4000 m
Main circuit
Speed control with slip compensation
BLDC motors
PM motors
Sensorless vector control (SLV)
Synchronous reluctance motors
