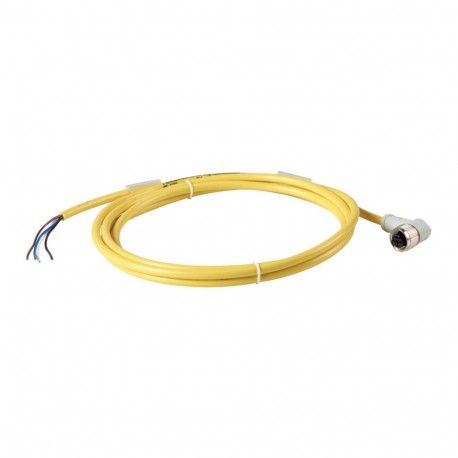

EATON - MOELLER CSDR5A5CY2210 CSDR5A5CY2210 166985 EATON ELECTRIC Connection Cable 5-pole/5-wire DC Connector M12 female right Angle/open .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CSDR5A5CY2210 166985 EATON ELECTRIC Connection Cable 5-pole/5-wire DC Connector M12 female right Angle/open ..

CSDR5A5CY2210

166985

EATON - MOELLER

1 Pcs.

Connection Cable; 5-pole/5-wire; DC; Connector M12 female right Angle/open; L=10m Connection cable, 5p/5Ltg, DC current, coupling m12 angled, open end, L=10m Connecting cable, Basic function: Accessories, Length: 10000 mm, Voltage type: DC, 5 pole, Style output side: Cable end, open, Style input side: Coupling, angled, For use with: DC sensors, IntelliView E75-DST4…, 5 pole, M12

Automation > Sensor-actuator patch cord

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Connection cable, 5p/5Ltg, DC current, coupling m12 angled, open end, L=10m
Connecting cable, Basic function: Accessories, Length: 10000 mm, Voltage type: DC, 5 pole, Style output side: Cable end, open, Style input side: Coupling, angled, For use with: DC sensors, IntelliView E75-DST4…, 5 pole, M12

Delivery program

Basic function
Accessories
Accessories
Connecting cables
Length
10000 mm
Pin assignment
1360SWI-149
Voltage type
DC
Number of poles
5 pole
Style output side
Cable end, open
Style input side
Coupling, angled
For use with
For use with
DC sensors, IntelliView E75-DST4…, 5 pole, M12

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Sensors (EG000026) / Sensor-actuator patch cord (EC001855)
Electric engineering, automation, process control engineering / Cable, wire / Ready-made data cable / Assembled sensor actuator-line ([email protected] [AFR601003])
Number of poles
5
Type of electrical connection, field-sided
M12
Type of plug-in contact, field sided
Female (bus)
Positioning cable feed, field-sided
Angled
Type of electrical connection, box-sided
Other
Type of plug-in contact, box-sided
Positioning cable feed, box-sided
Other
Cable length
10 m
Material of cable sheath
Other
Halogen free
No
Colour cable sheath
Other
With LED indication
No
Screened
No
Type of cable
Multi-core
Vulcanize
No
Material contact body
Other
Material of contact surface
Other
Permitted cable outer temperature after assembling without vibration
40 - 70 °C
Permitted cable outer temperature during assembling/handling
40 - 70 °C
Rated current In
0 A
Rated voltage
0 V
Continuity resistor
0 mOhm
Degree of protection (IP)
Other

ETIM for 166985 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 5
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Female (bus)
Positioning cable feed, field-sided (EF005928) Angled
Type of electrical connection, box-sided (EF005524) Other
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 10 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) No
Colour cable sheath (EF008249) Yellow
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) 40 °C
Permitted cable outer temperature during assembling/handling (EF001685) 40 °C
Rated current In (EF008250) 0 A
Rated voltage (EF000228) 0 V
Continuity resistance (EF003992) 0 mOhm
Degree of protection (IP) (EF005474) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
