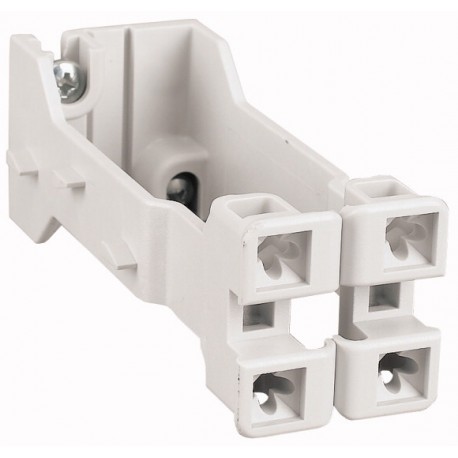

EATON - MOELLER Z-IVS-IH4 Z-IVS-IH4 112974 EATON ELECTRIC Insulated support bracket IVS+ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

Z-IVS-IH4 112974 EATON ELECTRIC Insulated support bracket IVS+

Z-IVS-IH4

112974

EATON - MOELLER

1 Pcs.

Insulated support bracket IVS+ Service distribution boards IVS are used for power distribution and measurement purposes in electrical systems for household electrical systems and in comparative systems such as residential buildings, schools, administration centers, offices and similar buildings.

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An insulated support bracket IVS+ provides secure mechanical mounting while maintaining electrical isolation for busbar systems and internal distribution structures within switchgear. These brackets prevent unwanted current transfer to panel frameworks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 160 mm
  • Height (EF000040): 120 mm
  • Depth (EF000049): 50 mm
  • Max. load capacity (EF000258): None kg
  • Material (EF002169): Plastic
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲
Insulated support bracket IVS+
Service distribution boards IVS are used for power distribution and measurement purposes in electrical systems for household electrical systems and in comparative systems such as residential buildings, schools, administration centers, offices and similar buildings.
[

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Component for installation (switchgear cabinet) (EC002620)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Elements for switching cabinet, housing, rack / Component for installation (electrical cabinet) ([email protected] [ACN627011])
Model
Other
Suitable for enclosure building width
0 mm
Suitable for enclosure building height
0 mm
Suitable for enclosure building depth
0 mm
Width
40 mm
Height
121.3 mm
Depth
40 mm
Max. load capacity
kg
Material
Plastic
Colour
Grey
RAL-number
7035
]

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
