View larger
Images are for illustrative purposes only. Please refer to data sheet for details

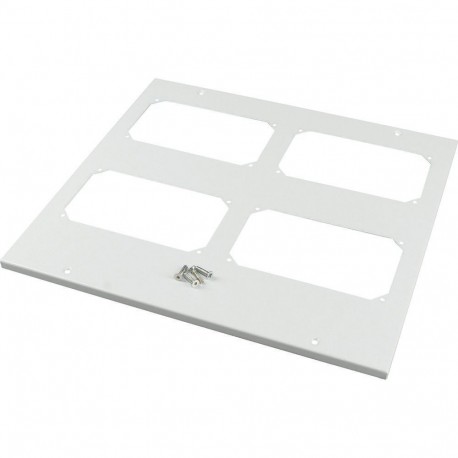

XSPTF1208-MC 158119 Y7-158119 EATON ELECTRIC Top plate, for F3A-flanges, for, WxD 1200x800mm
XSPTF1208-MC
158119
Y7-158119
EATON - MOELLER
1 Pcs.
Top plate, for F3A-flanges, for, WxD=1200x800mm
XSPTF1208-MC
Top plate for gland plate inserts up to IP55
Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Top plate, for F3A-flanges, for WxD=1200x800mm, grey
Top plate for gland plate inserts up to IP55
Technical data ETIM 7.0
Cabinet enclosures (EG000011) / Top-/floor cover element (enclosure/switchgear cabinet) (EC000744)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Roof element (electrical cabinet) / Top cover/top cover element (electrical cabinet ) ([email protected] [ACN616011])
Suitable for roof planking
Yes
Suitable for bottom planking
Yes
Width
1107 mm
Height
15 mm
Depth
682 mm
Suitable for enclosure building width
1200 mm
Suitable for enclosure building depth
800 mm
Material
Steel
Surface finishing
Powder coating
Colour
Grey
RAL-number
7035
With de-aeration
No
Suitable for outdoor set-up
No
With cable entry
Yes
| Feature Name | Feature Value |
|---|---|
| Suitable for roof planking (EF009584) | Yes |
| Suitable for bottom planking (EF009585) | Yes |
| Width (EF000008) | 700 mm |
| Height (EF000040) | 30 mm |
| Depth (EF000049) | 1100 mm |
| Suitable for enclosure building width (EF000326) | 1200 mm |
| Suitable for enclosure building depth (EF000327) | 800 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| With de-aeration (EF001161) | No |
| Suitable for outdoor set-up (EF005774) | No |
| With cable entry (EF000325) | Yes |
