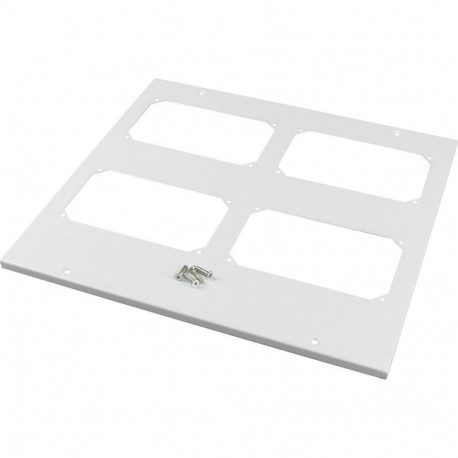

EATON - MOELLER XSPTF1206-MC XSPTF1206-MC 158117 Y7-158117 EATON ELECTRIC Top plate, for F3A-flanges, for, WxD 1200x600mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSPTF1206-MC 158117 Y7-158117 EATON ELECTRIC Top plate, for F3A-flanges, for, WxD 1200x600mm

XSPTF1206-MC

158117

Y7-158117

EATON - MOELLER

1 Pcs.

Top plate, for F3A-flanges, for, WxD=1200x600mm XSPTF1206-MC Top plate for gland plate inserts up to IP55

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller XSPTF1206-MC top plates are precision-engineered enclosure headers designed specifically to accommodate F3A flange plates for structured cable management in industrial setups. These steel covers safely seal the top of large cabinet assemblies against dust and particulate ingress. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking (EF009584): Yes
  • Suitable for bottom planking (EF009585): Yes
  • Width (EF000008): 500 mm
  • Height (EF000040): 30 mm
  • Depth (EF000049): 1100 mm
  • Suitable for enclosure building width (EF000326): 1200 mm
  • Suitable for enclosure building depth (EF000327): 600 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • With de-aeration (EF001161): No
  • Suitable for outdoor set-up (EF005774): No
  • With cable entry (EF000325): Yes

More info

▲
Top plate, for F3A-flanges, for WxD=1200x600mm, grey
Top plate for gland plate inserts up to IP55

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Top-/floor cover element (enclosure/switchgear cabinet) (EC000744)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Roof element (electrical cabinet) / Top cover/top cover element (electrical cabinet ) ([email protected] [ACN616011])
Suitable for roof planking
Yes
Suitable for bottom planking
Yes
Width
1107 mm
Height
15 mm
Depth
482 mm
Suitable for enclosure building width
1200 mm
Suitable for enclosure building depth
600 mm
Material
Steel
Surface finishing
Powder coating
Colour
Grey
RAL-number
7035
With de-aeration
No
Suitable for outdoor set-up
No
With cable entry
Yes
