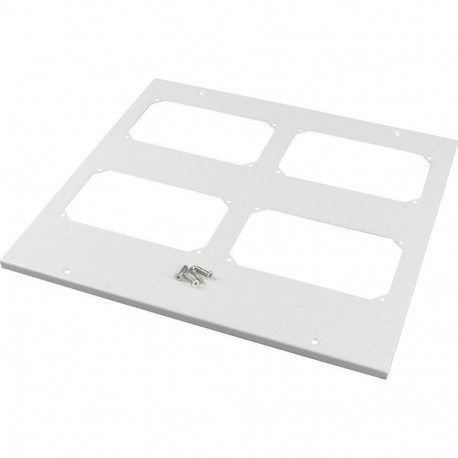

EATON - MOELLER XLST5F124 XLST5F124 284328 Y7-284328 EATON ELECTRIC Top plate, F3A-flanges for WxD 1200x400mm, IP55 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLST5F124 284328 Y7-284328 EATON ELECTRIC Top plate, F3A-flanges for WxD 1200x400mm, IP55

XLST5F124

284328

Y7-284328

EATON - MOELLER

1 Pcs.

Top plate, F3A-flanges for WxD=1200x400mm, IP55 XLST5F124 XLST5F124 - Bottom-/top plate for F3A flanges, for WxD = 1200 x 400mm, IP55, grey Bottom-/top plate, suitable for 1200 mm section width, depth 400 mm, material thickness 1.25 mm, for F3A flanges, IP55 in RAL 7035 structure finish

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller XLST5F124 top plate includes F3A flange cutouts to facilitate organized cable entry and secure wire management at the top of industrial enclosures. Flanged top plates are widely utilized in control engineering to streamline complex cabling installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking (EF009584): Yes
  • Suitable for bottom planking (EF009585): Yes
  • Width (EF000008): 300 mm
  • Height (EF000040): 30 mm
  • Depth (EF000049): 1100 mm
  • Suitable for enclosure building width (EF000326): 1200 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • With de-aeration (EF001161): No
  • Suitable for outdoor set-up (EF005774): No
  • With cable entry (EF000325): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
284328
Model Code
XLST5F124
EAN
4015082843281
Product Length/Depth
1100 mm
Product Height
30 mm
Product Width
300 mm
Product Weight
4.6 kg
Compliances
RoHS conform

Product specifications

Fitted with:
Cable entry
Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
1200 mm
Material
Steel
Suitable for
Bottom planking
Roof planking

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
