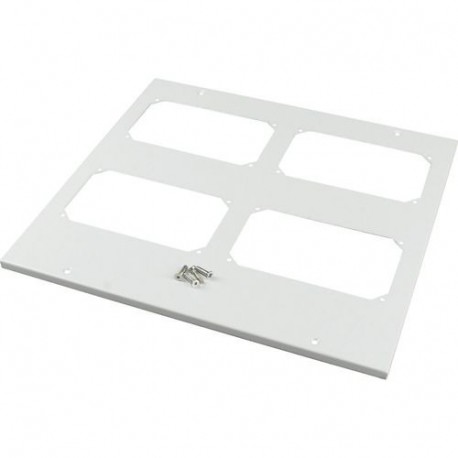

EATON - MOELLER XSPTF1008-MC XSPTF1008-MC 158118 Y7-158118 EATON ELECTRIC Top plate, for F3A-flanges, for, WxD 1000x800mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSPTF1008-MC 158118 Y7-158118 EATON ELECTRIC Top plate, for F3A-flanges, for, WxD 1000x800mm

XSPTF1008-MC

158118

Y7-158118

EATON - MOELLER

1 Pcs.

Top plate, for F3A-flanges, for, WxD=1000x800mm XSPTF1008-MC Eaton xEnergy Main LV systems LV switchgear. Top plate, for F3A-flanges, for WxD=1000x800mm, grey Top plate for gland plate inserts up to IP55

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Equipped to accept F3A-flanges, the Eaton Moeller XSPTF1008-MC top plate manages cable management entry points on industrial enclosures. Flanged top plates provide flexible routing options for complex multi-cable installations on large control cabinets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking: Yes
  • Suitable for bottom planking: Yes
  • Width: 700 mm
  • Height: 30 mm
  • Depth: 900 mm
  • Suitable for enclosure building width: 1000 mm
  • Suitable for enclosure building depth: 800 mm
  • Material: Steel
  • Surface finishing: Powder coated
  • Colour: Grey
  • RAL-number: 7035
  • With de-aeration: No
  • Suitable for outdoor set-up: No
  • With cable entry: Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
158118
Model Code
XSPTF1008-MC
EAN
4015081547067
Product Length/Depth
900 mm
Product Height
30 mm
Product Width
700 mm
Product Weight
8.5 kg
Compliances
RoHS conform

Product specifications

Fitted with:
Cable entry
Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
1000 mm
Material
Steel
Suitable for
Bottom planking
Roof planking
