View larger
Images are for illustrative purposes only. Please refer to data sheet for details

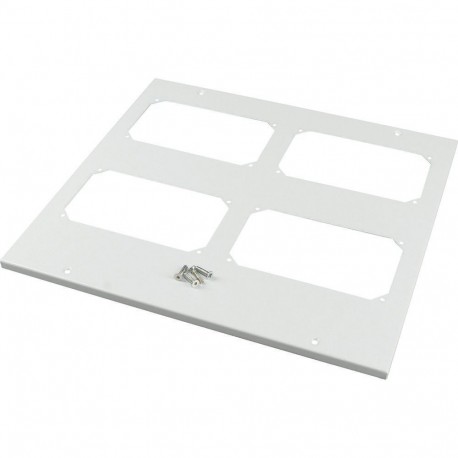

XSPTF1006 284326 Y7-284326 EATON ELECTRIC Top plate, F3A-flanges for WxD 1000x600mm, IP55
XSPTF1006
284326
Y7-284326
EATON - MOELLER
1 Pcs.
Top plate, F3A-flanges for WxD=1000x600mm, IP55
XSPTF1006
Eaton xEnergy Main LV systems LV switchgear. Top plate, F3A-flanges for WxD=1000x600mm, IP55, grey
Base plate / top plate, with flange, IP55, steel plate, not offset, powder-spray painted, width 1000 mm, depth 600 mm, RAL 7035
Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284326
Model Code
XSPTF1006
EAN
4015082843267
Product Length/Depth
900 mm
Product Height
30 mm
Product Width
500 mm
Product Weight
6.2 kg
Compliances
RoHS conform
Product specifications
Fitted with:
Cable entry
Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
600 mm
Suitable for enclosure building width
1000 mm
Material
Steel
Suitable for
Bottom planking
Roof planking
Roof planking
| Feature Name | Feature Value |
|---|---|
| Suitable for roof planking (EF009584) | Yes |
| Suitable for bottom planking (EF009585) | Yes |
| Width (EF000008) | 500 mm |
| Height (EF000040) | 30 mm |
| Depth (EF000049) | 900 mm |
| Suitable for enclosure building width (EF000326) | 1000 mm |
| Suitable for enclosure building depth (EF000327) | 600 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| With de-aeration (EF001161) | No |
| Suitable for outdoor set-up (EF005774) | No |
| With cable entry (EF000325) | Yes |
