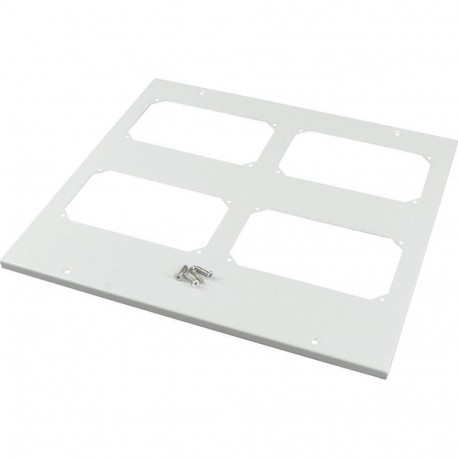

EATON - MOELLER XLST5F104 XLST5F104 284325 Y7-284325 EATON ELECTRIC Top plate, F3A-flanges for WxD 1000x400mm, IP55 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLST5F104 284325 Y7-284325 EATON ELECTRIC Top plate, F3A-flanges for WxD 1000x400mm, IP55

XLST5F104

284325

Y7-284325

EATON - MOELLER

1 Pcs.

Top plate, F3A-flanges for WxD=1000x400mm, IP55 XLST5F104 Eaton xEnergy Light LV systems LV switchgear. Bottom-/top plate for F3A flanges, for WxD = 1000 x 400mm, IP55, grey Bottom-/top plate, suitable for 1000 mm section width, depth 400 mm, material thickness 1.25 mm, for F3A flanges, IP55 in RAL 7035 structure finish

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing a dedicated entry and termination point, the Eaton Moeller XLST5F104 Top plate, F3A-flanges for WxD 1000x400mm, IP55 mounts onto industrial enclosures to facilitate organized cable routing and safeguard internal components. These enclosure plates are widely integrated into electrical distribution cabinets to maintain environmental ratings during cabling. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking (EF009584): Yes
  • Suitable for bottom planking (EF009585): Yes
  • Width (EF000008): 300 mm
  • Height (EF000040): 30 mm
  • Depth (EF000049): 900 mm
  • Suitable for enclosure building width (EF000326): 1000 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • With de-aeration (EF001161): No
  • Suitable for outdoor set-up (EF005774): No
  • With cable entry (EF000325): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
284325
Model Code
XLST5F104
EAN
4015082843250
Product Length/Depth
900 mm
Product Height
30 mm
Product Width
300 mm
Product Weight
3.9 kg
Compliances
RoHS conform

Product specifications

Fitted with:
Cable entry
Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
1000 mm
Material
Steel
Suitable for
Roof planking
Bottom planking
