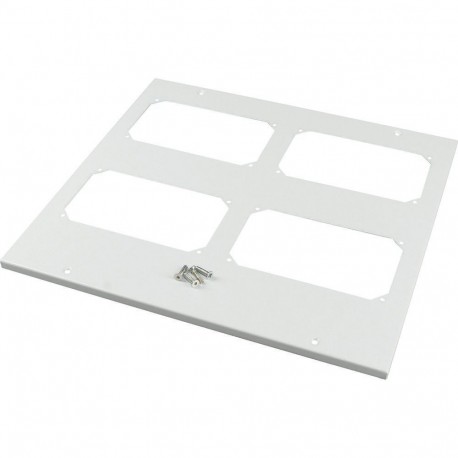

EATON - MOELLER XSPTF0808 XSPTF0808 284324 Y7-284324 EATON ELECTRIC Top plate, F3A-flanges for WxD 800x800mm, IP55 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSPTF0808 284324 Y7-284324 EATON ELECTRIC Top plate, F3A-flanges for WxD 800x800mm, IP55

XSPTF0808

284324

Y7-284324

EATON - MOELLER

1 Pcs.

Top plate, F3A-flanges for WxD=800x800mm, IP55 XSPTF0808 Eaton xEnergy Main LV systems LV switchgear. Top plate, F3A-flanges for WxD=800x800mm, IP55, grey Base plate / top plate, with flange, IP55, steel plate, not offset, powder-spray painted, width 800 mm, depth 800 mm, RAL 7035

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller XSPTF0808 top plate is designed to seal and protect industrial enclosures while accommodating modular cabling structures. Enclosure top and bottom plates provide structural closure, dust and moisture defense, and controlled cable access points for electrical distribution setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking (EF009584): Yes
  • Suitable for bottom planking (EF009585): Yes
  • Width (EF000008): 700 mm
  • Height (EF000040): 250 mm
  • Depth (EF000049): 730 mm
  • Suitable for enclosure building width (EF000326): 800 mm
  • Suitable for enclosure building depth (EF000327): 800 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • With de-aeration (EF001161): No
  • Suitable for outdoor set-up (EF005774): No
  • With cable entry (EF000325): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284324
Model Code
XSPTF0808
EAN
4015082843243
Product Length/Depth
730 mm
Product Height
250 mm
Product Width
700 mm
Product Weight
6.2 kg
Compliances
RoHS conform

Product specifications

Fitted with:
Cable entry
Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
800 mm
Material
Steel
Suitable for
Bottom planking
Roof planking
