View larger
Images are for illustrative purposes only. Please refer to data sheet for details

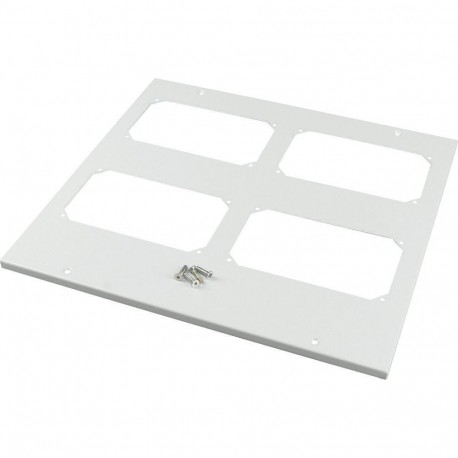

XLST5F84 284322 Y7-284322 EATON ELECTRIC Top plate, F3A-flanges for WxD 800x400mm, IP55
XLST5F84
284322
Y7-284322
EATON - MOELLER
1 Pcs.
Top plate, F3A-flanges for WxD=800x400mm, IP55
XLST5F84
Eaton xEnergy Light LV systems LV switchgear. Bottom-/top plate for F3A flanges, for WxD = 800 x 400mm, IP55, grey, 84
Bottom-/top plate, suitable for 800 mm section width, depth 400 mm, material thickness 1.25 mm, for F3A flanges, IP55 in RAL 7035 structure finish
Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
284322
Model Code
XLST5F84
EAN
4015082843229
Product Length/Depth
700 mm
Product Height
30 mm
Product Width
300 mm
Product Weight
3.2 kg
Compliances
RoHS conform
Product specifications
Fitted with:
Cable entry
Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
800 mm
Material
Steel
Suitable for
Bottom planking
Roof planking
Roof planking
| Feature Name | Feature Value |
|---|---|
| Suitable for roof planking (EF009584) | Yes |
| Suitable for bottom planking (EF009585) | Yes |
| Width (EF000008) | 300 mm |
| Height (EF000040) | 30 mm |
| Depth (EF000049) | 700 mm |
| Suitable for enclosure building width (EF000326) | 800 mm |
| Suitable for enclosure building depth (EF000327) | 400 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| With de-aeration (EF001161) | No |
| Suitable for outdoor set-up (EF005774) | No |
| With cable entry (EF000325) | Yes |
