View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XSPTF0606-XF 121440 Y7-121440 EATON ELECTRIC Power Distribution Components Enclosure Systems
XSPTF0606-XF
121440
Y7-121440
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XSPTF0606-XF

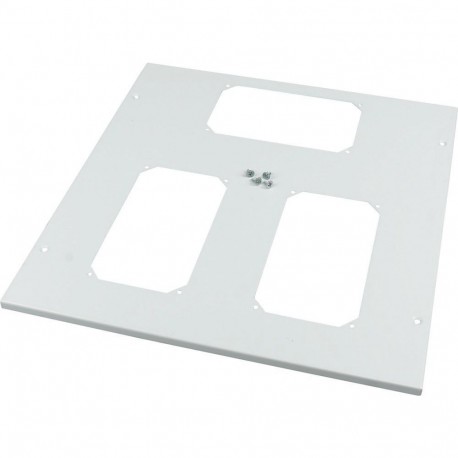

Eaton xEnergy Main LV systems LV switchgear. Top plate, F3A-flanges XF, for, WxD=600x600mm, IP55, grey
Top plate, F3A-flanges XF, for, WxD=600x600mm, IP55, grey
Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
121440
Model Code
XSPTF0606-XF
EAN
4015081192601
Product Length/Depth
500 mm
Product Height
30 mm
Product Width
500 mm
Product Weight
4 kg
Compliances
RoHS conform
Product specifications
Fitted with:
Cable entry
Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
600 mm
Suitable for enclosure building width
600 mm
Material
Steel
Suitable for
Roof planking
Bottom planking
Bottom planking
| Feature Name | Feature Value |
|---|---|
| Suitable for roof planking (EF009584) | true |
| Suitable for bottom planking (EF009585) | true |
| Width (EF000008) | 500 mm |
| Height (EF000040) | 30 mm |
| Depth (EF000049) | 500 mm |
| Suitable for enclosure building width (EF000326) | 600 mm |
| Suitable for enclosure building depth (EF000327) | 600 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coating |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| With de-aeration (EF001161) | false |
| Suitable for outdoor set-up (EF005774) | false |
| With cable entry (EF000325) | true |
