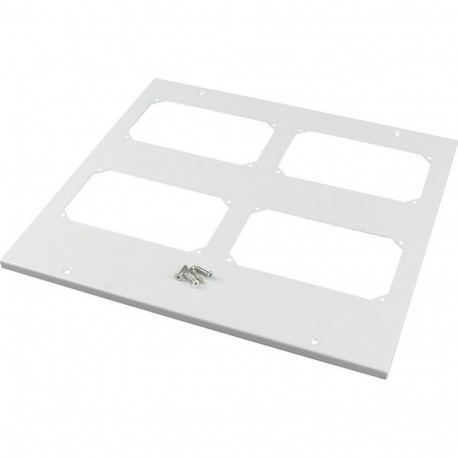

EATON - MOELLER XSPTF0408 XSPTF0408 284318 Y7-284318 EATON ELECTRIC Top plate, F3A-flanges for WxD 425x800mm, IP55 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSPTF0408 284318 Y7-284318 EATON ELECTRIC Top plate, F3A-flanges for WxD 425x800mm, IP55

XSPTF0408

284318

Y7-284318

EATON - MOELLER

1 Pcs.

Top plate, F3A-flanges for WxD=425x800mm, IP55 XSPTF0408 Eaton xEnergy Main LV systems LV switchgear. Top plate, F3A-flanges for WxD=425x800mm, IP55, grey Base plate / top plate, with flange, IP55, steel plate, not offset, powder-spray painted, width 425 mm, depth 800 mm, RAL 7035

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller XSPTF0408 is a top plate equipped with F3A-flanges designed to secure the top of electrical enclosures while supporting organized cable entry. Enclosure top plates are commonly applied in industrial control cabinets to seal housing units against environmental ingress while facilitating routing access. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking: Yes
  • Suitable for bottom planking: Yes
  • Width: 700 mm
  • Height: 30 mm
  • Depth: 350 mm
  • Suitable for enclosure building width: 425 mm
  • Suitable for enclosure building depth: 800 mm
  • Material: Steel
  • Surface finishing: Powder coated
  • Colour: Grey
  • RAL-number: 7035
  • With de-aeration: No
  • Suitable for outdoor set-up: No
  • With cable entry: Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284318
Model Code
XSPTF0408
EAN
4015082843182
Product Length/Depth
350 mm
Product Height
30 mm
Product Width
700 mm
Product Weight
3.3 kg
Compliances
RoHS conform

Product specifications

Fitted with:
Cable entry
Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
425 mm
Material
Steel
Suitable for
Roof planking
Bottom planking

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
