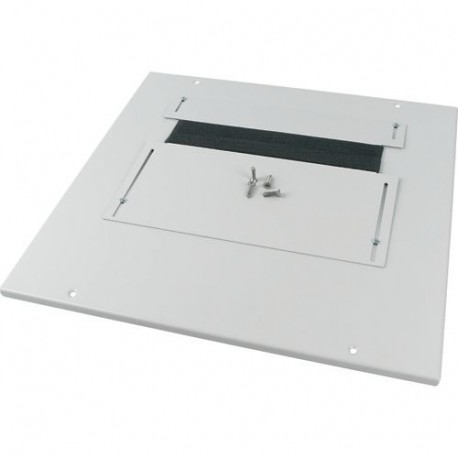

EATON - MOELLER XSPBM1208-MC XSPBM1208-MC 158123 Y7-158123 EATON ELECTRIC Top plate, split, for WxD 1200x800mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSPBM1208-MC 158123 Y7-158123 EATON ELECTRIC Top plate, split, for WxD 1200x800mm

XSPBM1208-MC

158123

Y7-158123

EATON - MOELLER

1 Pcs.

Top plate, split, for WxD=1200x800mm XSPBM1208-MC Multi-piece top plate up to IP31

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller split top plate allows for simplified cable routing and enclosure sealing during industrial assembly operations. The split design lets technicians position the plate around pre-installed wiring harnesses with ease. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking (EF009584): Yes
  • Suitable for bottom planking (EF009585): Yes
  • Width (EF000008): 700 mm
  • Height (EF000040): 30 mm
  • Depth (EF000049): 1100 mm
  • Suitable for enclosure building width (EF000326): 1200 mm
  • Suitable for enclosure building depth (EF000327): 800 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • With de-aeration (EF001161): No
  • Suitable for outdoor set-up (EF005774): No
  • With cable entry (EF000325): No

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
158123
Model Code
XSPBM1208-MC
EAN
4015081547111
Product Length/Depth
1100 mm
Product Height
30 mm
Product Width
700 mm
Product Weight
10.3 kg
Compliances
RoHS conform

Product specifications

Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
1200 mm
Material
Steel
Suitable for
Roof planking
Bottom planking
