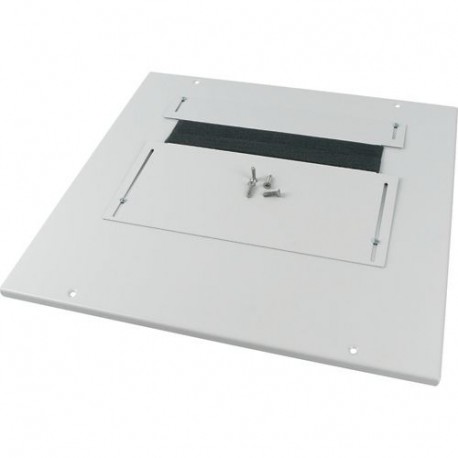

EATON - MOELLER XSPBM1206-MC XSPBM1206-MC 158121 Y7-158121 EATON ELECTRIC Top plate, split, for WxD 1200x600mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSPBM1206-MC 158121 Y7-158121 EATON ELECTRIC Top plate, split, for WxD 1200x600mm

XSPBM1206-MC

158121

Y7-158121

EATON - MOELLER

1 Pcs.

Top plate, split, for WxD=1200x600mm XSPBM1206-MC Multi-piece top plate up to IP31

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller split top plate part number XSPBM1206-MC is a modular two-part ceiling cover engineered to facilitate installation around pre-wired harnesses and internal busbars within large control cabinets. Split enclosure plates are commonly deployed in complex industrial switchgear installations where single-piece covers cannot be easily maneuvered over existing wiring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking (EF009584): Yes
  • Suitable for bottom planking (EF009585): Yes
  • Width (EF000008): 500 mm
  • Height (EF000040): 30 mm
  • Depth (EF000049): 1100 mm
  • Suitable for enclosure building width (EF000326): 1200 mm
  • Suitable for enclosure building depth (EF000327): 600 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • With de-aeration (EF001161): No
  • Suitable for outdoor set-up (EF005774): No
  • With cable entry (EF000325): No

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
158121
Model Code
XSPBM1206-MC
EAN
4015081547098
Product Length/Depth
1100 mm
Product Height
30 mm
Product Width
500 mm
Product Weight
7.4 kg
Compliances
RoHS conform

Product specifications

Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
600 mm
Suitable for enclosure building width
1200 mm
Material
Steel
Suitable for
Roof planking
Bottom planking
