EATON - MOELLER XSPBM1206-1 XSPBM1206-1 284299 Y7-284299 EATON ELECTRIC Fuse-link, medium voltage, 1.5 A, AC 2500 V, 114.2 x 10.4, fast-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSPBM1206-1 284299 Y7-284299 EATON ELECTRIC Fuse-link, medium voltage, 1.5 A, AC 2500 V, 114.2 x 10.4, fast-..

XSPBM1206-1

284299

Y7-284299

EATON - MOELLER

1 Pcs.

Fuse-link, medium voltage, 1.5 A, AC 2500 V, 114.2 x 10.4, fast-acting XSPBM1206-1 Bottom-/top plate, split, IP30, for WxD=1200x600mm, grey

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

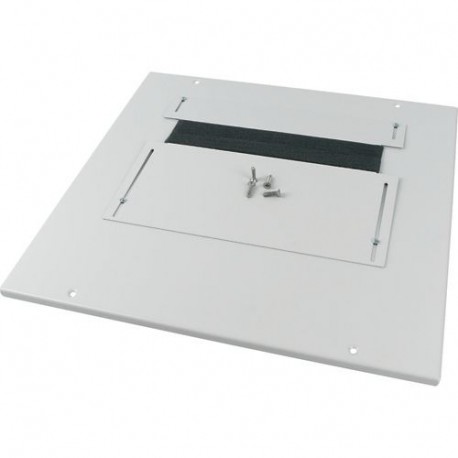

Designed for heavy industrial framework, the Eaton Moeller XSPBM1206-1 plate ensures stable top and bottom enclosure closure across large cabinet configurations. This powder-coated steel panel securely seals structural frames against environmental exposure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking (EF009584): Yes
  • Suitable for bottom planking (EF009585): Yes
  • Width (EF000008): 500 mm
  • Height (EF000040): 30 mm
  • Depth (EF000049): 1100 mm
  • Suitable for enclosure building width (EF000326): 1200 mm
  • Suitable for enclosure building depth (EF000327): 600 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • With de-aeration (EF001161): No
  • Suitable for outdoor set-up (EF005774): No
  • With cable entry (EF000325): No

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284299
Model Code
XSPBM1206-1
EAN
4015082842994
Product Length/Depth
1100 mm
Product Height
30 mm
Product Width
500 mm
Product Weight
7.4 kg
Compliances
RoHS conform

Product specifications

Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
600 mm
Suitable for enclosure building width
1200 mm
Material
Steel
Suitable for
Bottom planking
Roof planking
