EATON - MOELLER XSPBM1204-1 XSPBM1204-1 284298 Y7-284298 EATON ELECTRIC Fuse-link, low voltage, 1.25 A, AC 250 V, 10 x 38 mm, supplement.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSPBM1204-1 284298 Y7-284298 EATON ELECTRIC Fuse-link, low voltage, 1.25 A, AC 250 V, 10 x 38 mm, supplement..

XSPBM1204-1

284298

Y7-284298

EATON - MOELLER

1 Pcs.

Fuse-link, low voltage, 1.25 A, AC 250 V, 10 x 38 mm, supplemental, UL, CSA, time-delay XSPBM1204-1 Bottom-/top plate, split, IP30, for WxD=1200x400mm, grey

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

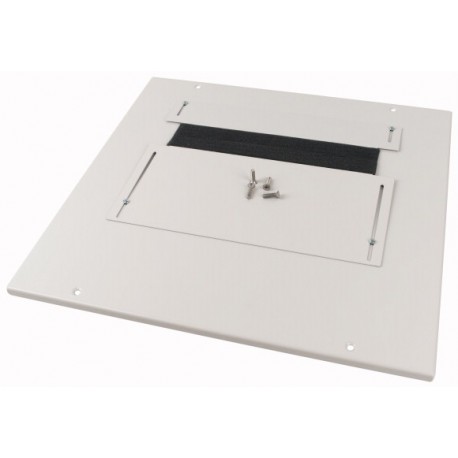

Eaton Moeller XSPBM1204-1 is a structural enclosure plate used to partition and seal modular distribution cabinet sections. Plates of this type provide rigid framing support and reliable internal separation for complex electrical builds.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking (EF009584): Yes
  • Suitable for bottom planking (EF009585): Yes
  • Width (EF000008): 300 mm
  • Height (EF000040): 30 mm
  • Depth (EF000049): 1100 mm
  • Suitable for enclosure building width (EF000326): 1200 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • With de-aeration (EF001161): No
  • Suitable for outdoor set-up (EF005774): No
  • With cable entry (EF000325): No

More info

▲
EL-Nummer (Norway)
2473182
Bottom-/top plate, split, IP30, for WxD=1200x400mm, grey

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Top-/floor cover element (enclosure/switchgear cabinet) (EC000744)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Roof element (electrical cabinet) / Top cover/top cover element (electrical cabinet ) ([email protected] [ACN616011])
Suitable for roof planking
Yes
Suitable for bottom planking
Yes
Width
1107 mm
Height
15 mm
Depth
282 mm
Suitable for enclosure building width
1200 mm
Suitable for enclosure building depth
400 mm
Material
Steel
Surface finishing
Powder coating
Colour
Grey
RAL-number
7035
With de-aeration
No
Suitable for outdoor set-up
No
With cable entry
No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
