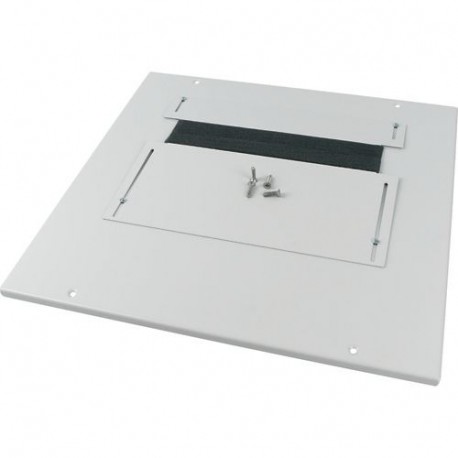

EATON - MOELLER XSPBM1006-1 XSPBM1006-1 284296 Y7-284296 EATON ELECTRIC Bottom/top plate, +2 Openings, IP30, for WxD 1000 x 600 mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSPBM1006-1 284296 Y7-284296 EATON ELECTRIC Bottom/top plate, +2 Openings, IP30, for WxD 1000 x 600 mm

XSPBM1006-1

284296

Y7-284296

EATON - MOELLER

1 Pcs.

Bottom/top plate, +2 Openings, IP30, for WxD = 1000 x 600 mm XSPBM1006-1 Eaton xEnergy Main LV systems LV switchgear. Bottom/top plate, +2 Openings, IP30, for WxD = 1000 x 600 mm, grey Base plate / top plate, split, with 2 openings, IP30, sheet steel, not offset, powder-spray painted, width 1000 mm, depth 600 mm, RAL 7035

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller bottom/top plate serves as a protective barrier and structural closure for industrial enclosures, helping to safeguard internal electrical components from dust and environmental ingress. This model, part number XSPBM1006-1, is constructed from durable powder-coated steel in a standard grey finish to match common panel assemblies. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking (EF009584): Yes
  • Suitable for bottom planking (EF009585): Yes
  • Width (EF000008): 500 mm
  • Height (EF000040): 30 mm
  • Depth (EF000049): 900 mm
  • Suitable for enclosure building width (EF000326): 1000 mm
  • Suitable for enclosure building depth (EF000327): 600 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • With de-aeration (EF001161): No
  • Suitable for outdoor set-up (EF005774): No
  • With cable entry (EF000325): No

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284296
Model Code
XSPBM1006-1
EAN
4015082842963
Product Length/Depth
900 mm
Product Height
30 mm
Product Width
500 mm
Product Weight
6.2 kg
Compliances
Contact Manufacturer
RoHS conform

Product specifications

Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
600 mm
Suitable for enclosure building width
1000 mm
Material
Steel
Suitable for
Roof planking
Bottom planking
