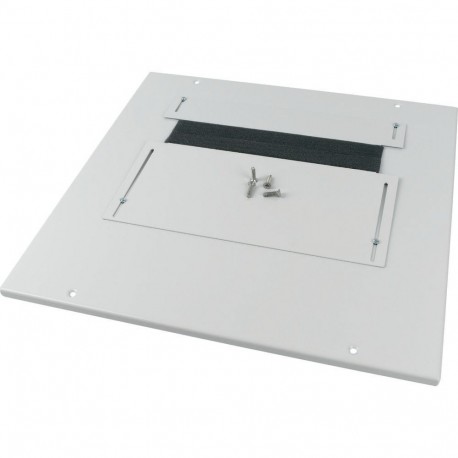

EATON - MOELLER XLST3F104 XLST3F104 284295 Y7-284295 EATON ELECTRIC Bottom-/top plate, split, IP30, for WxD 1000x400mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLST3F104 284295 Y7-284295 EATON ELECTRIC Bottom-/top plate, split, IP30, for WxD 1000x400mm

XLST3F104

284295

Y7-284295

EATON - MOELLER

1 Pcs.

Bottom-/top plate, split, IP30, for WxD=1000x400mm XLST3F104 Eaton xEnergy Light LV systems LV switchgear. Bottom-/top plate, adjustable flange plates, for WxD = 1000 x 400mm, IP30, grey Bottom-/top plate, suitable for 1000 mm section width, depth 400 mm, material thickness 1.25 mm, featuring adjustable foam rubber flange plates IP30 in RAL 7035 structure finish

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built with a split configuration, the Eaton Moeller XLST3F104 plate is utilized for closing enclosure top and bottom frames while allowing easier post-installation access. Split panel designs assist technicians when routing complex cable harnesses into fully assembled electrical panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking: Yes
  • Suitable for bottom planking: Yes
  • Width: 300 mm
  • Height: 30 mm
  • Depth: 900 mm
  • Suitable for enclosure building width: 1000 mm
  • Suitable for enclosure building depth: 400 mm
  • Material: Steel
  • Surface finishing: Powder coated
  • Colour: Grey
  • RAL-number: 7035
  • With de-aeration: No
  • Suitable for outdoor set-up: No
  • With cable entry: No

More info

▲

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
284295
Model Code
XLST3F104
EAN
4015082842956
Product Length/Depth
900 mm
Product Height
30 mm
Product Width
300 mm
Product Weight
3.9 kg
Compliances
RoHS conform

Product specifications

Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
1000 mm
Material
Steel
Suitable for
Bottom planking
Roof planking
