View larger
Images are for illustrative purposes only. Please refer to data sheet for details

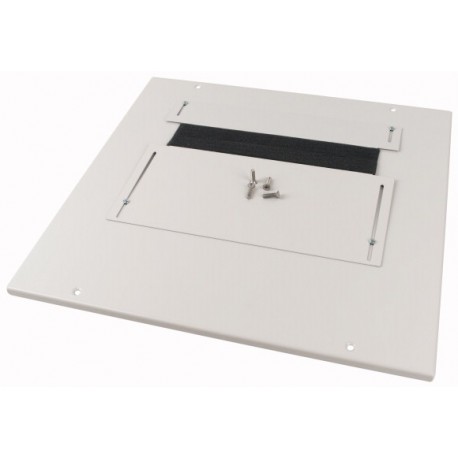

XSPBM0808 284294 Y7-284294 EATON ELECTRIC Bottom-/top plate, split, IP30, for WxD 800x800mm
XSPBM0808
284294
Y7-284294
EATON - MOELLER
1 Pcs.
Bottom-/top plate, split, IP30, for WxD=800x800mm
Bottom / Ceiling plate, window, IP30, for WxD=800x800mm
Base plate / top plate, split, IP30, sheet steel, not offset, powder-spray painted, width 800 mm, depth 600 mm, RAL 7035
Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲EL-Nummer (Norway)
2473178
Bottom-/top plate, split, IP30, for WxD=800x800mm, grey
Base plate / top plate, split, IP30, sheet steel, not offset, powder-spray painted, width 800 mm, depth 600 mm, RAL 7035
Technical data ETIM 7.0
Cabinet enclosures (EG000011) / Top-/floor cover element (enclosure/switchgear cabinet) (EC000744)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Roof element (electrical cabinet) / Top cover/top cover element (electrical cabinet ) ([email protected] [ACN616011])
Suitable for roof planking
Yes
Suitable for bottom planking
Yes
Width
707 mm
Height
15 mm
Depth
682 mm
Suitable for enclosure building width
800 mm
Suitable for enclosure building depth
800 mm
Material
Steel
Surface finishing
Powder coating
Colour
Grey
RAL-number
7035
With de-aeration
No
Suitable for outdoor set-up
No
With cable entry
No
| Feature Name | Feature Value |
|---|---|
| Suitable for roof planking (EF009584) | Yes |
| Suitable for bottom planking (EF009585) | Yes |
| Width (EF000008) | 700 mm |
| Height (EF000040) | 30 mm |
| Depth (EF000049) | 700 mm |
| Suitable for enclosure building width (EF000326) | 800 mm |
| Suitable for enclosure building depth (EF000327) | 800 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| With de-aeration (EF001161) | No |
| Suitable for outdoor set-up (EF005774) | No |
| With cable entry (EF000325) | No |
