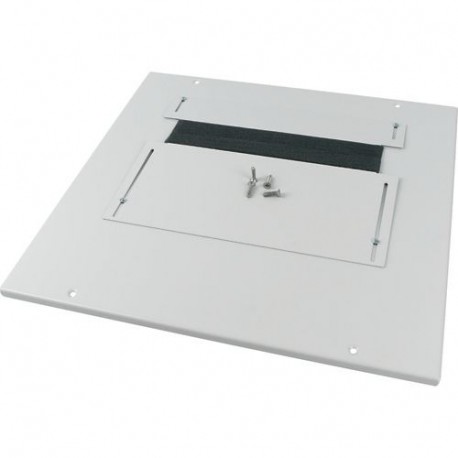

XSPBM0806 284293 Y7-284293 EATON ELECTRIC Bottom-/top plate, split, IP30, for WxD 800x600mm
XSPBM0806
284293
Y7-284293
EATON - MOELLER
1 Pcs.
Bottom-/top plate, split, IP30, for WxD=800x600mm
XSPBM0806
Eaton xEnergy Main LV systems LV switchgear. Base plate / top plate, split, IP30, sheet steel, not offset, powder-spray painted, width 800 mm, depth 600 mm, RAL 7035
Base plate / top plate, split, IP30, sheet steel, not offset, powder-spray painted, width 800 mm, depth 600 mm, RAL 7035
Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284293
Model Code
XSPBM0806
EAN
4015082842932
Product Length/Depth
720 mm
Product Height
30 mm
Product Width
500 mm
Product Weight
5.6 kg
Compliances
Contact Manufacturer
RoHS conform
RoHS conform
Product specifications
Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
600 mm
Suitable for enclosure building width
800 mm
Material
Steel
Suitable for
Bottom planking
Roof planking
Roof planking
| Feature Name | Feature Value |
|---|---|
| Suitable for roof planking (EF009584) | Yes |
| Suitable for bottom planking (EF009585) | Yes |
| Width (EF000008) | 500 mm |
| Height (EF000040) | 30 mm |
| Depth (EF000049) | 720 mm |
| Suitable for enclosure building width (EF000326) | 800 mm |
| Suitable for enclosure building depth (EF000327) | 600 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| With de-aeration (EF001161) | No |
| Suitable for outdoor set-up (EF005774) | No |
| With cable entry (EF000325) | No |
