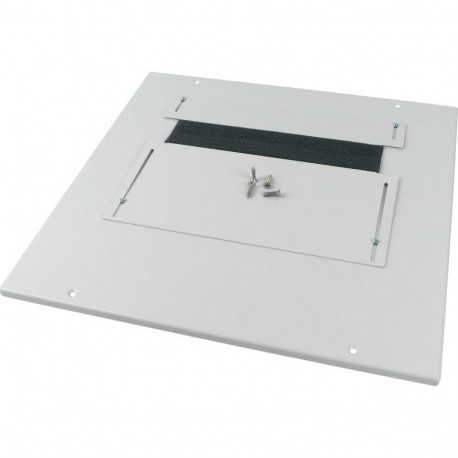

EATON - MOELLER XLST3F84 XLST3F84 284292 Y7-284292 EATON ELECTRIC Bottom-/top plate, split, IP30, for WxD 800x400mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLST3F84 284292 Y7-284292 EATON ELECTRIC Bottom-/top plate, split, IP30, for WxD 800x400mm

XLST3F84

284292

Y7-284292

EATON - MOELLER

1 Pcs.

Bottom-/top plate, split, IP30, for WxD=800x400mm XLST3F84 Eaton xEnergy Light LV systems LV switchgear. Bottom-/top plate, adjustable flange plates, for WxD = 800 x 400mm, IP30, grey Bottom-/top plate, suitable for 800 mm section width, depth 400 mm, material thickness 1.25 mm, featuring adjustable foam rubber flange plates IP30 in RAL 7035 structure finish

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller XLST3F84 split bottom and top plate functions as a modular enclosure boundary component designed to seal housing perimeters while allowing manageable cable access. Split plate designs are commonly utilized in industrial panel building to ease wiring installation around pre-assembled internal components. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking (EF009584): Yes
  • Suitable for bottom planking (EF009585): Yes
  • Width (EF000008): 300 mm
  • Height (EF000040): 30 mm
  • Depth (EF000049): 700 mm
  • Suitable for enclosure building width (EF000326): 800 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • With de-aeration (EF001161): No
  • Suitable for outdoor set-up (EF005774): No
  • With cable entry (EF000325): No

More info

▲

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
284292
Model Code
XLST3F84
EAN
4015082842925
Product Length/Depth
700 mm
Product Height
30 mm
Product Width
300 mm
Product Weight
3.2 kg
Compliances
RoHS conform

Product specifications

Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
800 mm
Material
Steel
Suitable for
Roof planking
Bottom planking
