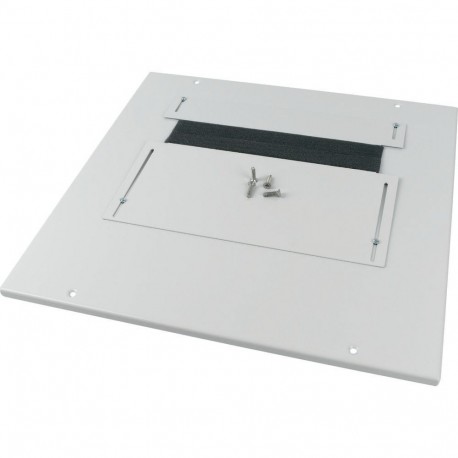

EATON - MOELLER XLST3F64 XLST3F64 284289 Y7-284289 EATON ELECTRIC Bottom-/top plate, split, IP30, for WxD 600x400mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLST3F64 284289 Y7-284289 EATON ELECTRIC Bottom-/top plate, split, IP30, for WxD 600x400mm

XLST3F64

284289

Y7-284289

EATON - MOELLER

1 Pcs.

Bottom-/top plate, split, IP30, for WxD=600x400mm XLST3F64 Eaton xEnergy Light LV systems LV switchgear. Bottom-/top plate, adjustable flange plates, for WxD = 600 x 400mm, IP30, grey Bottom-/top plate, suitable for 600 mm section width, depth 400 mm, material thickness 1.25 mm, featuring adjustable foam rubber flange plates IP30 in RAL 7035 structure finish

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller XLST3F64 split bottom and top plate offers a flexible entry and closure solution for modular enclosure frames used in industrial automation. Split bottom and top plates allow technicians to position and seal around cables easily during final assembly work. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking (EF009584): Yes
  • Suitable for bottom planking (EF009585): Yes
  • Width (EF000008): 285 mm
  • Height (EF000040): 20 mm
  • Depth (EF000049): 505 mm
  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • With de-aeration (EF001161): No
  • Suitable for outdoor set-up (EF005774): No
  • With cable entry (EF000325): No

More info

▲

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
284289
Model Code
XLST3F64
EAN
4015082842895
Product Length/Depth
505 mm
Product Height
20 mm
Product Width
285 mm
Product Weight
2.6 kg
Compliances
RoHS conform

Product specifications

Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
600 mm
Material
Steel
Suitable for
Bottom planking
Roof planking
