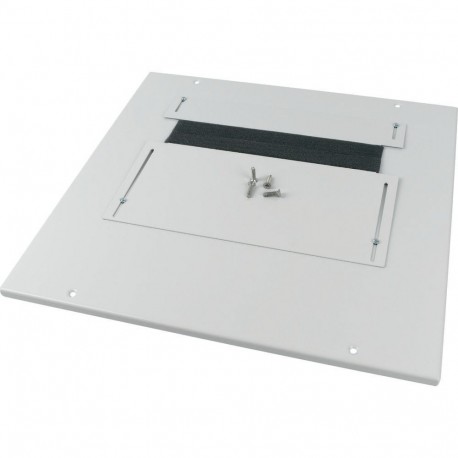

EATON - MOELLER XLST3F44 XLST3F44 284286 Y7-284286 EATON ELECTRIC Bottom-/top plate, split, IP30, for WxD 425x400mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLST3F44 284286 Y7-284286 EATON ELECTRIC Bottom-/top plate, split, IP30, for WxD 425x400mm

XLST3F44

284286

Y7-284286

EATON - MOELLER

1 Pcs.

Bottom-/top plate, split, IP30, for WxD=425x400mm XLST3F44 Eaton xEnergy Light LV systems LV switchgear. Bottom-/top plate, adjustable flange plates, for WxD = 425 x 400mm, IP30, grey Bottom-/top plate, suitable for 425 mm section width, depth 400 mm, material thickness 1.25 mm, featuring adjustable foam rubber flange plates IP30 in RAL 7035 structure finish

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller XLST3F44 split bottom and top plate provides flexible cable entry and panel closure options for modular enclosure assemblies. The split design simplifies retrofitting around pre-installed wiring harnesses while maintaining standard enclosure ingress ratings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking (EF009584): Yes
  • Suitable for bottom planking (EF009585): Yes
  • Width (EF000008): 300 mm
  • Height (EF000040): 30 mm
  • Depth (EF000049): 350 mm
  • Suitable for enclosure building width (EF000326): 425 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • With de-aeration (EF001161): No
  • Suitable for outdoor set-up (EF005774): No
  • With cable entry (EF000325): No

More info

▲

General specifications

Product Name
Eaton xEnergy Light LV systems LV switchgear
Catalog Number
284286
Model Code
XLST3F44
EAN
4015082842864
Product Length/Depth
350 mm
Product Height
30 mm
Product Width
300 mm
Product Weight
1.5 kg
Compliances
RoHS conform

Product specifications

Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
425 mm
Material
Steel
Suitable for
Bottom planking
Roof planking
