XSMMFB2008 284265 Y7-284265 EATON ELECTRIC Power Distribution Components Enclosure Systems
XSMMFB2008
284265
Y7-284265
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XSMMFB2008

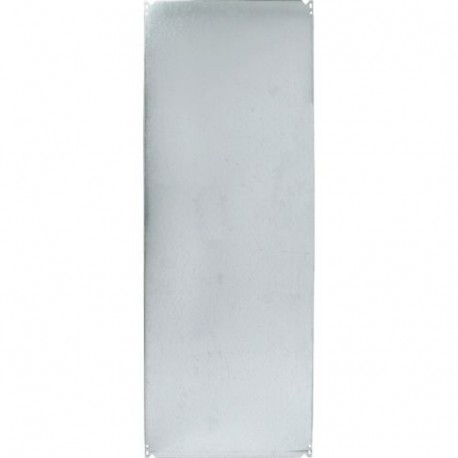

Mounting plate, +mounting kit section, fix, MB rear, HxW=2000x800mm
mounting kit for mounting plate, horizontal; main busbars at the top; various steel sheet parts; section width 800mm, section height 2000 mm; RAL 7035
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284265
Model Code
XSMMFB2008
EAN
4015082842659
Product Length/Depth
1900 mm
Product Height
40 mm
Product Width
700 mm
Product Weight
36.5 kg
Compliances
Contact Manufacturer
RoHS conform
RoHS conform
Product specifications
Color
Stainless steel
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
800 mm
Material
Metal
Model
Other
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for enclosure building width (EF000326) | 800 mm |
| Suitable for enclosure building height (EF009583) | 2000 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 700 mm |
| Height (EF000040) | 40 mm |
| Depth (EF000049) | 1900 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
