EATON - MOELLER XSMMFB2006 XSMMFB2006 284264 Y7-284264 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSMMFB2006 284264 Y7-284264 EATON ELECTRIC Power Distribution Components Enclosure Systems

XSMMFB2006

284264

Y7-284264

EATON - MOELLER

1 Pcs.

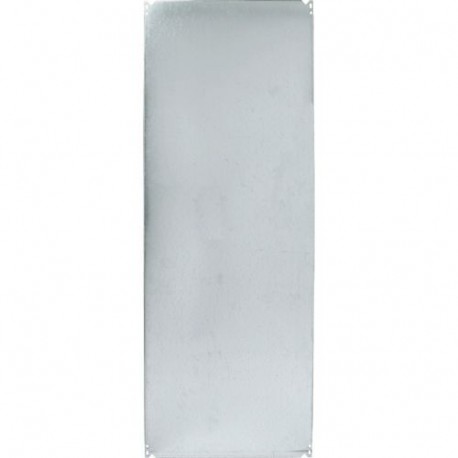

Power Distribution Components Enclosure Systems XSMMFB2006 Mounting plate, +mounting kit section, fix, MB rear, HxW=2000x600mm mounting kit for mounting plate, horizontal; main busbars at the top; various steel sheet parts; section width 600mm, section height 2000 mm; RAL 7035

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller power distribution components enclosure systems (XSMMFB2006) part serves as a structural framing or divider element designed for organizing large industrial switchboard bays. Enclosure system accessories maintain structural integrity and internal modular partitioning. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building height (EF009583): 2000 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 500 mm
  • Height (EF000040): 40 mm
  • Depth (EF000049): 1900 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284264
Model Code
XSMMFB2006
EAN
4015082842642
Product Length/Depth
1900 mm
Product Height
40 mm
Product Width
500 mm
Product Weight
27 kg
Compliances
Contact Manufacturer
RoHS conform

Product specifications

Color
Stainless steel
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
600 mm
Material
Metal
Model
Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
