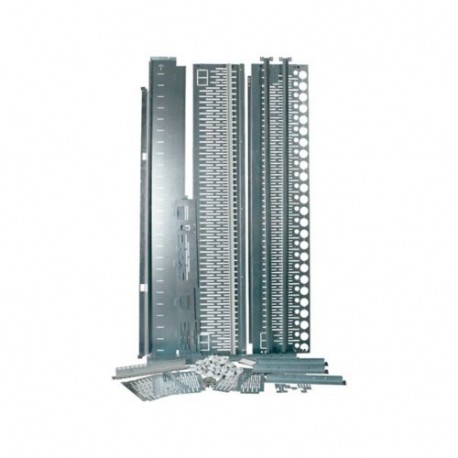

EATON - MOELLER XSMFDB0608-MC XSMFDB0608-MC 151212 Y7-151212 EATON ELECTRIC Mounting kit, MCC, for motor control centers with fully withdr.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSMFDB0608-MC 151212 Y7-151212 EATON ELECTRIC Mounting kit, MCC, for motor control centers with fully withdr..

XSMFDB0608-MC

151212

Y7-151212

EATON - MOELLER

1 Pcs.

Mounting kit, MCC, for motor control centers with fully withdrawable units, module width 800 mm, section depth 800 mm, RAL 7035 XSMFDB0608-MC Mounting kit for motor control centers with fully withdrawable units, module width 800 mm, galvanized sheet metal, RAL 7035 sheet steel center web, can be used with cable rail area in the back, right-hand side cable outgoer area, in IP31 and IP55, for 1000/1200 mm section widths, consisting of: left and right multi-installation side panel, all sections required for fixing, includes all partitions, includes all screw accessories, includes all cable protection grommets (KT21 and KT42)

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

XSMFDB0608-MC 151212 Y7-151212 EATON ELECTRIC Mounting kit, MCC, for motor control centers with fully withdr.. is a specialized metal mounting kit by Eaton Moeller designed for motor control center applications. Such kits provide the structural framework needed to install and guide withdrawable functional units securely.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 800 mm
  • Width (EF000008): 450 mm
  • Height (EF000040): 80 mm
  • Depth (EF000049): 2000 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
151212
Model Code
XSMFDB0608-MC
EAN
4015081480074
Product Length/Depth
2000 mm
Product Height
80 mm
Product Width
450 mm
Product Weight
35 kg
Compliances
RoHS conform

Product specifications

Color
Gray
Load capacity - max
0 kg
RAL-number
7035
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
600 mm
Material
Metal
Model
Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
