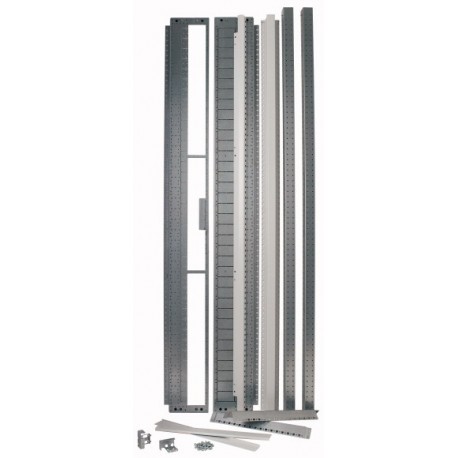

EATON - MOELLER XSMFDB0608 XSMFDB0608 284249 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSMFDB0608 284249 EATON ELECTRIC Power Distribution Components Enclosure Systems

XSMFDB0608

284249

EATON - MOELLER

1 Pcs.

Power Distribution Components Enclosure Systems Mounting kit, section, switch aut. 1600A, for 4, MB=600mm, P=800mm Mounting kit, section, circuit breaker to 1600A, Form 4, main busbar rear, module width=600mm, D=800mm, grey

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller XSMFDB0608 power distribution component enclosure system provides robust structural housing for complex electrical switchgear assemblies. Enclosures of this standard are utilized extensively in industrial facilities to house control architecture and protect sensitive components from environmental exposure.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 800 mm
  • Width (EF000008): 345 mm
  • Height (EF000040): 65 mm
  • Depth (EF000049): 1960 mm
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲
EL-Nummer (Norway)
2473135
Mounting kit, section, circuit breaker to 1600A, Form 4, main busbar rear, module width=600mm, D=800mm, grey

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Component for installation (switchgear cabinet) (EC002620)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Elements for switching cabinet, housing, rack / Component for installation (electrical cabinet) ([email protected] [ACN627011])
Model
Other
Suitable for enclosure building width
600 mm
Suitable for enclosure building height
0 mm
Suitable for enclosure building depth
800 mm
Width
600 mm
Height
2000 mm
Depth
800 mm
Max. load capacity
kg
Material
Metal
Colour
Grey
RAL-number
7035
