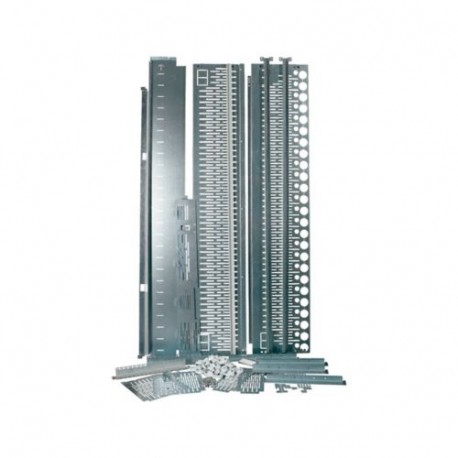

EATON - MOELLER XSMFDB0606-MC XSMFDB0606-MC 151211 Y7-151211 EATON ELECTRIC Mounting kit, MCC, for motor control centers with fully withdr.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSMFDB0606-MC 151211 Y7-151211 EATON ELECTRIC Mounting kit, MCC, for motor control centers with fully withdr..

XSMFDB0606-MC

151211

Y7-151211

EATON - MOELLER

1 Pcs.

Mounting kit, MCC, for motor control centers with fully withdrawable units, module width 600 mm, section depth 600 mm, RAL 7035 XSMFDB0606-MC Mounting kit for motor control centers with fully withdrawable units, module width 600 mm, galvanized sheet metal, RAL 7035 sheet steel center web, can be used with cable rail area in the back, right-hand side cable outgoer area, in IP31 and IP55, for 1000/1200 mm section widths, consisting of: left and right multi-installation side panel, all sections required for fixing, includes all partitions, includes all screw accessories, includes all cable protection grommets (KT21 and KT42)

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Featuring a robust metal build, this Eaton Moeller XSMFDB0606-MC mounting kit is specialized hardware configured for motor control center installations housing fully withdrawable units. Such kits provide the precise mechanical framework required to safely install and align modular switching and control blocks in complex industrial architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 600 mm
  • Width (EF000008): 450 mm
  • Height (EF000040): 80 mm
  • Depth (EF000049): 2000 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
151211
Model Code
XSMFDB0606-MC
EAN
4015081480067
Product Length/Depth
2000 mm
Product Height
80 mm
Product Width
450 mm
Product Weight
35 kg
Compliances
RoHS conform

Product specifications

Color
Gray
Load capacity - max
0 kg
RAL-number
7035
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
600 mm
Suitable for enclosure building width
600 mm
Material
Metal
Model
Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
