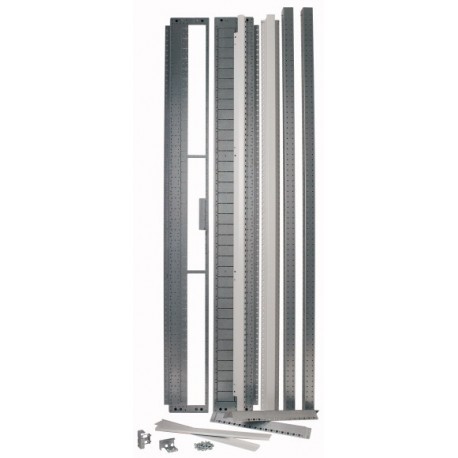

EATON - MOELLER XSMFDB0606 XSMFDB0606 284248 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSMFDB0606 284248 EATON ELECTRIC Power Distribution Components Enclosure Systems

XSMFDB0606

284248

EATON - MOELLER

1 Pcs.

Power Distribution Components Enclosure Systems Mounting kit, section, circuit breaker to 1600A, Form 4, main busbar rear, module width=600mm, D=600mm, grey

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller XSMFDB0606 power distribution enclosure system hardware supports the rigid assembly of industrial switchgear frameworks and modular cabinet housing. Structural profiles and system add-ons of this nature are widely utilized in factory power distribution hubs to maintain mechanical integrity under load. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 600 mm
  • Width (EF000008): 345 mm
  • Height (EF000040): 65 mm
  • Depth (EF000049): 1960 mm
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲
Mounting kit, section, circuit breaker to 1600A, Form 4, main busbar rear, module width=600mm, D=600mm, grey

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Component for installation (switchgear cabinet) (EC002620)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Elements for switching cabinet, housing, rack / Component for installation (electrical cabinet) ([email protected] [ACN627011])
Model
Other
Suitable for enclosure building width
600 mm
Suitable for enclosure building height
0 mm
Suitable for enclosure building depth
600 mm
Width
600 mm
Height
2000 mm
Depth
600 mm
Max. load capacity
kg
Material
Metal
Colour
Grey
RAL-number
7035

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
