EATON - MOELLER XSMFDB0406 XSMFDB0406 284246 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSMFDB0406 284246 EATON ELECTRIC Power Distribution Components Enclosure Systems

XSMFDB0406

284246

EATON - MOELLER

1 Pcs.

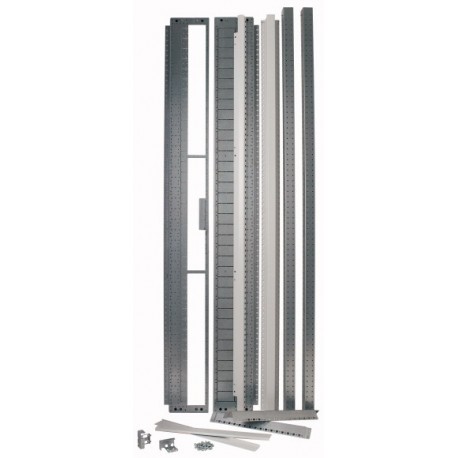

Power Distribution Components Enclosure Systems Mounting kit, section, circuit breaker to 1600A, Form 4, main busbar rear, module width=425mm, D=600mm, grey

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A power distribution enclosure system component provides structural support and protective housing for heavy-duty electrical switchgear and busbar arrangements. Industrial facilities utilize these durable metal structures to organize high-amperage distribution networks safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width (EF000008): 300 mm
  • Height (EF000040): 100 mm
  • Depth (EF000049): 2000 mm

More info

▲
Mounting kit, section, circuit breaker to 1600A, Form 4, main busbar rear, module width=425mm, D=600mm, grey

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Component for installation (switchgear cabinet) (EC002620)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Elements for switching cabinet, housing, rack / Component for installation (electrical cabinet) ([email protected] [ACN627011])
Model
Other
Suitable for enclosure building width
425 mm
Suitable for enclosure building height
0 mm
Suitable for enclosure building depth
600 mm
Width
425 mm
Height
2000 mm
Depth
600 mm
Max. load capacity
kg
Material
Metal
Colour
Grey
RAL-number
7035
