View larger
Images are for illustrative purposes only. Please refer to data sheet for details

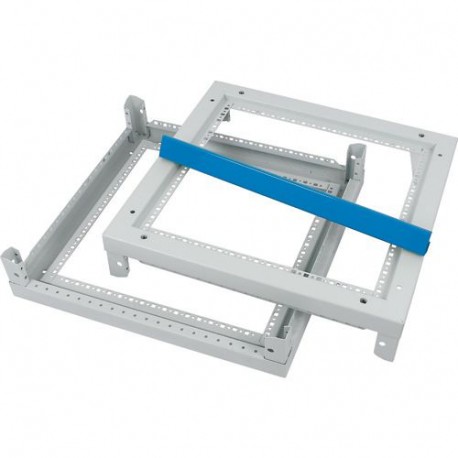

XSFB1208 284244 Y7-284244 EATON ELECTRIC Basic frame, for WxD 1200x800mm
XSFB1208
284244
Y7-284244
EATON - MOELLER
1 Pcs.
Basic frame, for WxD=1200x800mm
XSFB1208
Frame for empty section, upper and lower frame, with RAL 5017 branding strip, steel plate, including mounting material, powder-spray painted, width 1200 mm, depth 800 mm, RAL 7035
Automation > Base/base element (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284244
Model Code
XSFB1208
EAN
4015082842444
Product Length/Depth
1200 mm
Product Height
250 mm
Product Width
800 mm
Product Weight
21 kg
Compliances
RoHS conform
Product specifications
Features
Mounting plate depth-adjustable
EMC-version
Connectable
EMC-version
Connectable
Surface finishing
Powder coating
Color
Gray
Load capacity - max
0 kg
RAL-number
7035
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
1200 mm
Material
Steel
Model
Base stabilization profile
Impact strength
IK10
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Base stabilization profile |
| Material (EF002169) | Steel |
| Colour (EF000007) | Grey |
| Max. load capacity (EF000258) | 0 kg |
| Suitable for enclosure building width (EF000326) | 1200 mm |
| Suitable for enclosure building depth (EF000327) | 800 mm |
| Suitable for aeration/de-aeration (EF000324) | No |
| Suitable for cable patch (EF007251) | No |
| Width (EF000008) | 800 mm |
| Height (EF000040) | 250 mm |
| Depth (EF000049) | 1200 mm |
