EATON - MOELLER XSDMRV0612 XSDMRV0612 284217 Y7-284217 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSDMRV0612 284217 Y7-284217 EATON ELECTRIC Power Distribution Components Enclosure Systems

XSDMRV0612

284217

Y7-284217

EATON - MOELLER

1 Pcs.

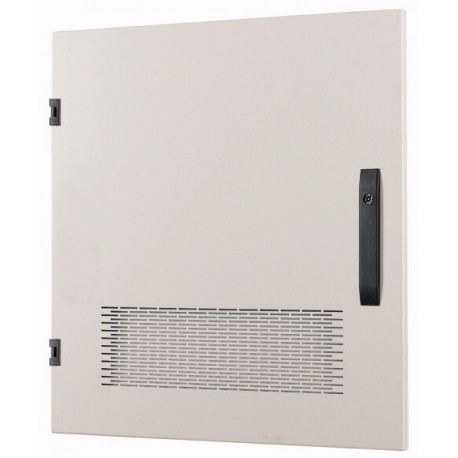

Power Distribution Components Enclosure Systems XSDMRV0612 Door to switchgear area, ventilated, right, IP30, HxW=600x1200mm, grey

Automation > Door/operating panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The XSDMRV0612 Eaton Electric power distribution component enclosure system part serves as a structural framing and housing accessory. Enclosure systems and structural components of this caliber are routinely installed in industrial facilities to house complex electrical distribution gear. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Stop door
  • Version as glazed door (EF006966): No
  • Width (EF000008): 650 mm
  • Height (EF000040): 45 mm
  • Depth (EF000049): 1190 mm
  • EMC-version (EF001062): Yes
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • Degree of protection (IP) (EF005474): IP30

More info

▲
EL-Nummer (Norway)
2473103
Door to switchgear area, ventilated, right, IP30, HxW=600x1200mm, grey

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Door/operating panel (switchgear cabinet) (EC000747)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Door (electrical cabinet) / Door/operating panel (enclosure) ([email protected] [ACN614011])
Model
Stop door
Version as glazed door
No
Version as door for disconnecting switch interlocking
No
Width
1192 mm
Height
640 mm
Depth
30 mm
EMC-version
Yes
Material
Steel
Surface finishing
Powder coating
Colour
Grey
Degree of protection (IP)
IP30
Degree of protection (NEMA)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
