EATON - MOELLER XSDMLV0612 XSDMLV0612 284208 Y7-284208 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSDMLV0612 284208 Y7-284208 EATON ELECTRIC Power Distribution Components Enclosure Systems

XSDMLV0612

284208

Y7-284208

EATON - MOELLER

1 Pcs.

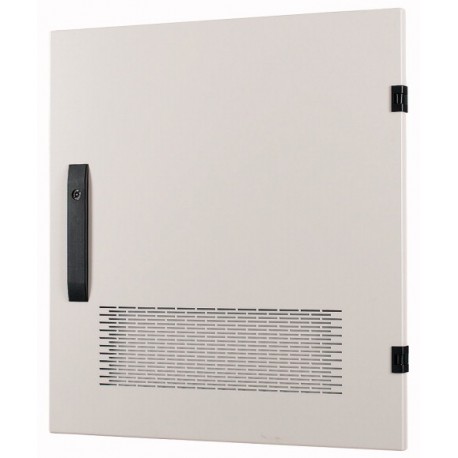

Power Distribution Components Enclosure Systems XSDMLV0612 Door to switchgear area, ventilated, IP30, left, HxW=600x1200mm, grey

Automation > Door/operating panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Power Distribution Components Enclosure Systems by Eaton Moeller, specifically part number XSDMLV0612, function as an external barrier system to enclose sensitive electrical equipment and busbar architectures safely. This structural component preserves functional integrity within industrial power networks by shielding internal gear from physical contact. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Stop door
  • Version as glazed door (EF006966): No
  • Width (EF000008): 1210 mm
  • Height (EF000040): 50 mm
  • Depth (EF000049): 650 mm
  • EMC-version (EF001062): Yes
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • Degree of protection (IP) (EF005474): IP30

More info

▲
EL-Nummer (Norway)
2473093
Door to switchgear area, ventilated, IP30, left, HxW=600x1200mm, grey

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Door/operating panel (switchgear cabinet) (EC000747)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Door (electrical cabinet) / Door/operating panel (enclosure) ([email protected] [ACN614011])
Model
Stop door
Version as glazed door
No
Version as door for disconnecting switch interlocking
No
Width
1192 mm
Height
640 mm
Depth
30 mm
EMC-version
Yes
Material
Steel
Surface finishing
Powder coating
Colour
Grey
Degree of protection (IP)
IP30
Degree of protection (NEMA)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
