View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XSDMLV0610 285507 Y7-285507 EATON ELECTRIC Power Distribution Components Enclosure Systems
XSDMLV0610
285507
Y7-285507
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XSDMLV0610

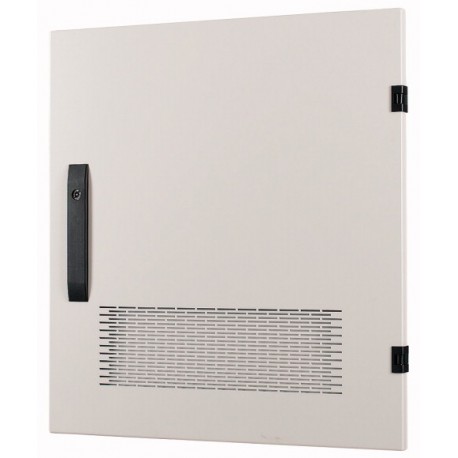

Door to switchgear area, ventilated, IP30, left, HxW=600x1000mm, grey
Automation > Door/operating panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲EL-Nummer (Norway)
2473092
Door to switchgear area, ventilated, IP30, left, HxW=600x1000mm, grey
Technical data ETIM 7.0
Cabinet enclosures (EG000011) / Door/operating panel (switchgear cabinet) (EC000747)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Door (electrical cabinet) / Door/operating panel (enclosure) ([email protected] [ACN614011])
Model
Stop door
Version as glazed door
No
Version as door for disconnecting switch interlocking
No
Width
992 mm
Height
640 mm
Depth
30 mm
EMC-version
Yes
Material
Steel
Surface finishing
Powder coating
Colour
Grey
Degree of protection (IP)
IP30
Degree of protection (NEMA)
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Stop door |
| Version as glazed door (EF006966) | No |
| Version as door for disconnecting switch interlocking (EF006967) | No |
| Width (EF000008) | 650 mm |
| Height (EF000040) | 55 mm |
| Depth (EF000049) | 1010 mm |
| EMC-version (EF001062) | Yes |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| Degree of protection (IP) (EF005474) | IP30 |
