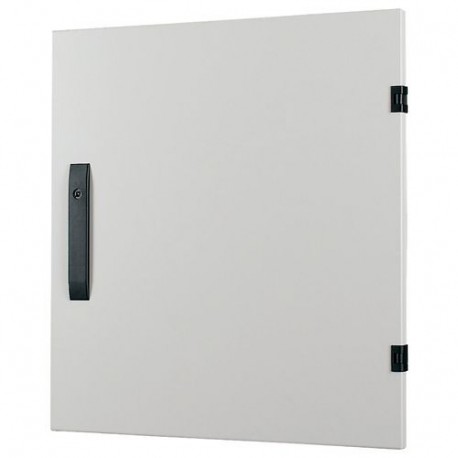

EATON - MOELLER XSDMC0608 XSDMC0608 284196 Y7-284196 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XSDMC0608 284196 Y7-284196 EATON ELECTRIC Power Distribution Components Enclosure Systems

XSDMC0608

284196

Y7-284196

EATON - MOELLER

1 Pcs.

Power Distribution Components Enclosure Systems XSDMC0608 Eaton xEnergy Main LV systems LV switchgear. Door to switchgear area, closed, IP55, HxW=600x800mm, grey Door to switchgear area, closed, IP55, HxW=600x800mm, grey

Automation > Door/operating panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284196
Model Code
XSDMC0608
EAN
4015082841966
Product Length/Depth
790 mm
Product Height
40 mm
Product Width
650 mm
Product Weight
11.4 kg
Compliances
Contact Manufacturer
RoHS conform
Certifications
Contact Manufacturer

Product specifications

Features
EMC-version
Surface finishing
Powder coating
Color
Gray
Degree of protection
IP55
NEMA 4X
Material
Steel
Model
Stop door

ETIM for 284196 Cabinets and enclosures (EC000747)
Feature Name Feature Value
Model (EF000010) Stop door
Version as glazed door (EF006966) No
Version as door for disconnecting switch interlocking (EF006967) No
Width (EF000008) 650 mm
Height (EF000040) 40 mm
Depth (EF000049) 790 mm
EMC-version (EF001062) Yes
Material (EF002169) Steel
Surface finishing (EF006569) Powder coated
Colour (EF000007) Grey
Degree of protection (IP) (EF005474) IP55
