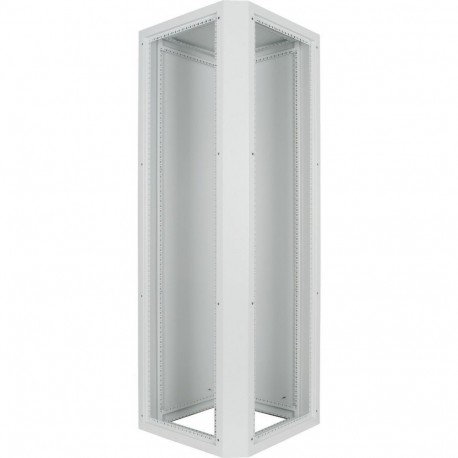

XSC200808 288867 Y7-288867 EATON ELECTRIC Corner section, HxWxD 2000x850x850mm
XSC200808
288867
Y7-288867
EATON - MOELLER
1 Pcs.
Corner section, HxWxD=2000x850x850mm
XSC200808
Corner section, for setting up a section around the corner, includes back and top plates, height 2000mm, width 850 mm, depth 850 mm, steel plate, powder-spray painted, RAL 7035
Automation > Enclosure/switchgear cabinet (empty)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller corner section component provides structural support and spatial alignment for modular enclosure configurations within large electrical switchboard rows. Corner elements ensure stable assembly alignment when installing complex multi-bay distribution systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width (EF000008): 860 mm
- Height (EF000040): 860 mm
- Depth (EF000049): 2020 mm
- Material (EF002169): Steel
- Surface finishing (EF006569): Powder coated
- Colour (EF000007): Grey
- RAL-number (EF000116): 7035
- Freestanding (EF020363): No
- Floor standing wall model (EF015208): No
- Suitable for wall mounting (EF000664): Yes
- Corner model (EF020814): No
- Intermediate mounting (EF022994): No
- Couplable (EF001229): Yes
- With mounting plate (EF000118): No
- Mounting plate depth-adjustable (EF006054): No
- Suitable for wall built-in (EF007536): No
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
288867
Model Code
XSC200808
EAN
4015082888671
Product Length/Depth
2020 mm
Product Height
860 mm
Product Width
860 mm
Product Weight
50 kg
Compliances
RoHS conform
Product specifications
Features
Connectable
EMC-version
EMC-version
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Not applicable.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Not applicable.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Met; assembled and secured as per the latest applicable instruction leaflet.
10.2.6 Mechanical impact
IK10
10.2.7 Inscriptions
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
< 0.1 Ω; meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 690 V AC
10.9.3 Impulse withstand voltage
6 kV
10.9.4 Testing of enclosures made of insulating material
Does not apply to metal enclosures.
Pollution degree
3
Surface finishing
Powder coating
Degree of protection
IK10
IP55
4X (NEMA)
IP55
4X (NEMA)
Material quality
Other
Color
Gray
Permissible load of the mounting plate according to IEC 62208 - max
4000 N
Number of locks
0
RAL-number
7035
Material
Steel
Mounting method
Wall fastening
Overvoltage category
IV
Installation type
Floor installation possible
Protection class
I
Number of covers/doors
0
Permissible load of the enclosure according to IEC 62208 - max
5000 N
Permissible load of the door(s) according to IEC 62208 - max
1000 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
0 W
Number of connector holes
0
