EATON - MOELLER XPSS2004 XPSS2004 284781 Y7-284781 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPSS2004 284781 Y7-284781 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPSS2004

284781

Y7-284781

EATON - MOELLER

1 Pcs.

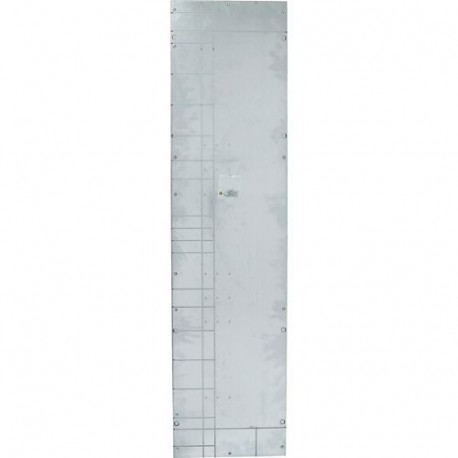

Power Distribution Components Enclosure Systems XPSS2004 Partition, section/section, form 3b, HxD=2000x400mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Power Distribution Components Enclosure Systems hardware manufactured by Eaton Moeller, part number XPSS2004, supplies essential structural support and internal partitioning for modular switchgear assemblies. Such assembly kits allow panel builders to configure robust separation barriers within industrial distribution boards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Width (EF000008): 350 mm
  • Height (EF000040): 30 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): Yes

More info

▲
EL-Nummer (Norway)
2473055
Partition, section/section, form 3b, HxD=2000x400mm

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Divider panel (switchgear cabinet) (EC002525)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Divider panel (electrical cabinet) ([email protected] [AKE424014])
Modular spacing
12.5 mm
Suitable for enclosure building width
0 mm
Suitable for enclosure building depth
400 mm
Width
15 mm
Height
1907 mm
Material
Steel
Surface finishing
Galvanized
Colour
Stainless steel
RAL-number
0
With cable entry
No
Number of height units
0
With lock
No
Construction type
Assembly kit
For internal separation form 2a
Yes
For internal separation form 2b
Yes
For internal separation form 3a
Yes
For internal separation form 3b
Yes
For internal separation form 4a
Yes
For internal separation form 4b
Yes
