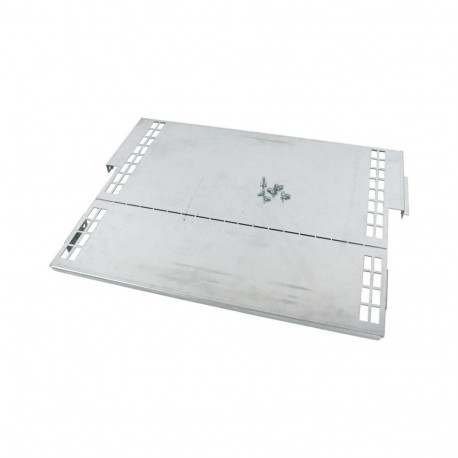

EATON - MOELLER XPNMCB08 XPNMCB08 116455 Y7-116455 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPNMCB08 116455 Y7-116455 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPNMCB08

116455

Y7-116455

EATON - MOELLER

1 Pcs.

Power Distribution Components Enclosure Systems XPNMCB08 Eaton xEnergy Main LV systems LV switchgear. Partition, circuit breaker switchgear area/cable connection area, busbar back, W=800mm Partition, circuit breaker switchgear area/cable connection area, busbar back, W=800mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Power distribution components enclosure systems like the Eaton Moeller XPNMCB08 provide modular mechanical elements for organizing and partitioning internal switchgear spaces. These assembly kits facilitate structured integration of circuit protection devices within heavy-duty industrial enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 800 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 360 mm
  • Height (EF000040): 30 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): No
  • For internal separation form 2b (EF009587): No
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
116455
Model Code
XPNMCB08
EAN
4015081161928
Product Length/Depth
720 mm
Product Height
30 mm
Product Width
360 mm
Product Weight
2.7 kg
Compliances
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
800 mm
Material
Steel
Suitable for
Internal separation form 3b
Internal separation form 3a
Internal separation form 4a
Internal separation form 4b
