View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XPNMCB04 284174 Y7-284174 EATON ELECTRIC Power Distribution Components Enclosure Systems
XPNMCB04
284174
Y7-284174
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XPNMCB04

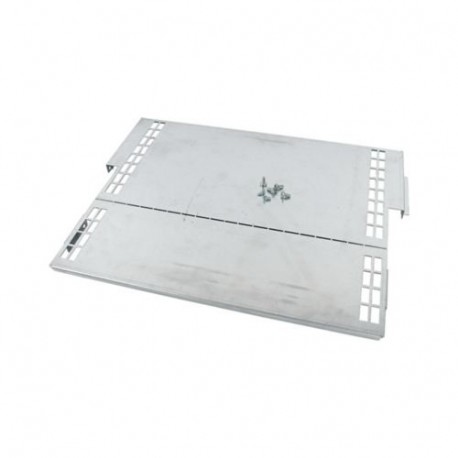

Eaton xEnergy Main LV systems LV switchgear. Partition, circuit breaker switchgear area/cable connection area, busbar back, W=425mm
Partition, circuit breaker switchgear area/cable connection area, busbar back, W=425mm
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284174
Model Code
XPNMCB04
EAN
4015082841744
Product Length/Depth
350 mm
Product Height
30 mm
Product Width
360 mm
Product Weight
1.3 kg
Compliances
RoHS conform
Product specifications
Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
425 mm
Material
Steel
Suitable for
Internal separation form 3a
Internal separation form 3b
Internal separation form 4a
Internal separation form 4b
Internal separation form 3b
Internal separation form 4a
Internal separation form 4b
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 425 mm |
| Suitable for enclosure building depth (EF000327) | 400 mm |
| Width (EF000008) | 360 mm |
| Height (EF000040) | 30 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
