View larger
Images are for illustrative purposes only. Please refer to data sheet for details

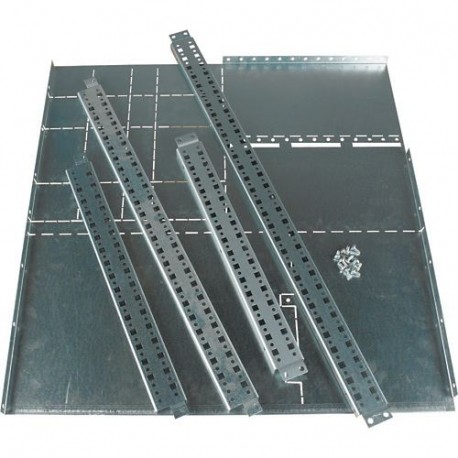

XPNCCB 126009 Y7-126009 EATON ELECTRIC Power Distribution Components Enclosure Systems
XPNCCB
126009
Y7-126009
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XPNCCB
Eaton xEnergy Main LV systems LV switchgear. Partition, 2xNZM, connection area
Partition, 2xNZM, connection area
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
126009
Model Code
XPNCCB
EAN
4015081235988
Product Length/Depth
650 mm
Product Height
50 mm
Product Width
500 mm
Product Weight
3.4 kg
Compliances
RoHS conform
Product specifications
Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
600 mm
Suitable for enclosure building width
425 mm
Material
Steel
Suitable for
Internal separation form 4b
Internal separation form 4a
Internal separation form 4a
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 425 mm |
| Suitable for enclosure building depth (EF000327) | 600 mm |
| Width (EF000008) | 500 mm |
| Height (EF000040) | 50 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | No |
| For internal separation form 3b (EF009589) | No |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
