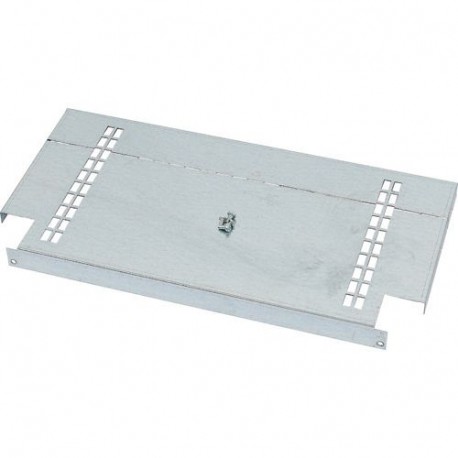

EATON - MOELLER XPNBCT0402 XPNBCT0402 285501 Y7-285501 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPNBCT0402 285501 Y7-285501 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPNBCT0402

285501

Y7-285501

EATON - MOELLER

1 Pcs.

Power Distribution Components Enclosure Systems XPNBCT0402 Eaton xEnergy Main LV systems LV switchgear. Partition, circuit breaker connection-/busbar top area, form 2b, WxD=400x400mm Partition, circuit breaker connection-/busbar top area, form 2b, WxD=400x400mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Power Distribution Components Enclosure Systems hardware from Eaton Moeller, specifically part number XPNBCT0402, supplies the structural separation necessary for organizing multi-bay electrical enclosures. Assemblies of this type are widely deployed in industrial control architectures to partition switchgear sections safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 400 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Width (EF000008): 360 mm
  • Height (EF000040): 30 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): Yes
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 3a (EF009588): No

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
285501
Model Code
XPNBCT0402
EAN
4015082855017
Product Length/Depth
350 mm
Product Height
30 mm
Product Width
360 mm
Product Weight
1.3 kg
Compliances
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
400 mm
Suitable for enclosure building width
400 mm
Material
Steel
Suitable for
Internal separation form 2b
Internal separation form 2a
