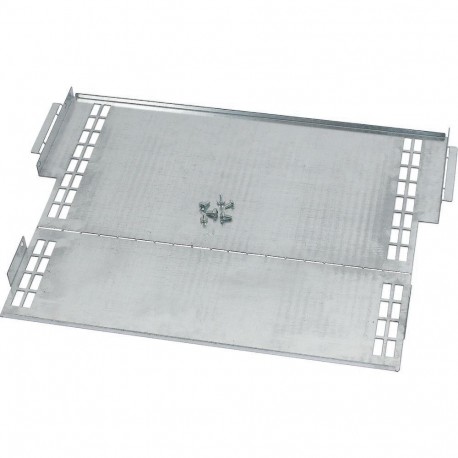

EATON - MOELLER XPNBCB0802 XPNBCB0802 118735 Y7-118735 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XPNBCB0802 118735 Y7-118735 EATON ELECTRIC Power Distribution Components Enclosure Systems

XPNBCB0802

118735

Y7-118735

EATON - MOELLER

1 Pcs.

Power Distribution Components Enclosure Systems XPNBCB0802 Eaton xEnergy Main LV systems LV switchgear. Partition, NZM4 connection-/busbar back area, WxD=800x200mm Partition, NZM4 connection-/busbar back area, WxD=800x200mm

Automation > Divider panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller power distribution components enclosure systems part (XPNBCB0802) acts as an assembly kit for segmenting modular electrical enclosure interiors into secure functional areas. Panel builders apply these partition kits to prevent contact hazards and meet strict industrial compartmentalization requirements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Modular spacing (EF000394): 12.5 mm
  • Suitable for enclosure building width (EF000326): 800 mm
  • Suitable for enclosure building depth (EF000327): 600 mm
  • Width (EF000008): 440 mm
  • Height (EF000040): 35 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Galvanised
  • Colour (EF000007): Stainless steel
  • RAL-number (EF000116): 0
  • With cable entry (EF000325): No
  • Number of height units (EF003561): 0
  • With lock (EF006306): No
  • Construction type (EF000767): Assembly kit
  • For internal separation form 2a (EF009586): No
  • For internal separation form 2b (EF009587): No
  • For internal separation form 3a (EF009588): Yes

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
118735
Model Code
XPNBCB0802
EAN
4015081168774
Product Length/Depth
800 mm
Product Height
35 mm
Product Width
440 mm
Product Weight
4.5 kg
Compliances
RoHS conform

Product specifications

Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
600 mm
Suitable for enclosure building width
800 mm
Material
Steel
Suitable for
Internal separation form 3a
Internal separation form 4a
Internal separation form 4b
Internal separation form 3b

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
