XPNBCB0406 285523 Y7-285523 EATON ELECTRIC Power Distribution Components Enclosure Systems
XPNBCB0406
285523
Y7-285523
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XPNBCB0406

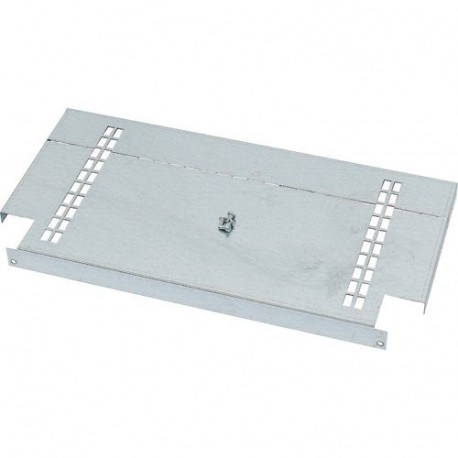

Eaton xEnergy Main LV systems LV switchgear. Partition, circuit breaker connection-/busbar back area, form 2b, WxD=425x800mm
Partition, circuit breaker connection-/busbar back area, form 2b, WxD=425x800mm
Automation > Divider panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
285523
Model Code
XPNBCB0406
EAN
4015082855239
Product Length/Depth
350 mm
Product Height
30 mm
Product Width
360 mm
Product Weight
1.5 kg
Compliances
RoHS conform
Product specifications
Construction type
Assembly kit
Surface finishing
Galvanized
Color
Stainless steel
Modular spacing
12.5 mm
Number of height units
0
RAL-number
0
Suitable for enclosure building length/depth
800 mm
Suitable for enclosure building width
425 mm
Material
Steel
Suitable for
Internal separation form 2a
Internal separation form 2b
Internal separation form 2b
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 425 mm |
| Suitable for enclosure building depth (EF000327) | 800 mm |
| Width (EF000008) | 360 mm |
| Height (EF000040) | 30 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | Yes |
| For internal separation form 2b (EF009587) | Yes |
| For internal separation form 3a (EF009588) | No |
| For internal separation form 3b (EF009589) | No |
| For internal separation form 4a (EF009590) | No |
| For internal separation form 4b (EF009591) | No |
